Under Desk Drawer with clamp

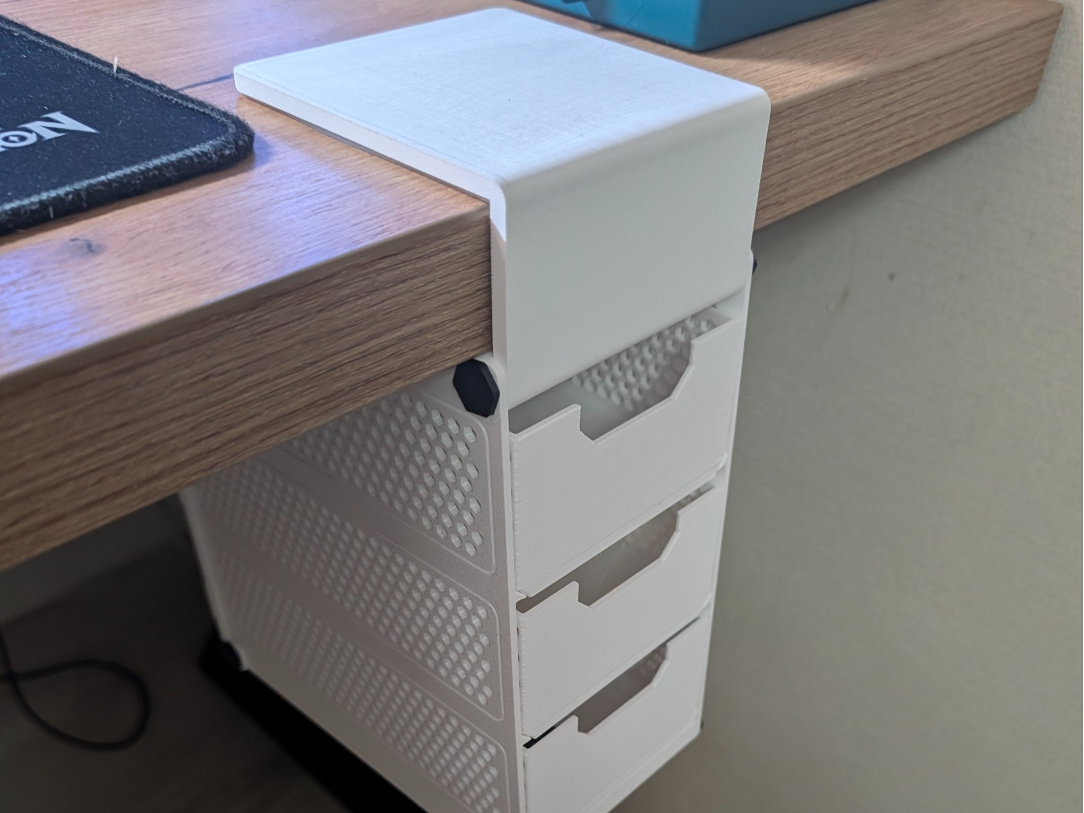

Under Desk Drawer with clamp - 1

Peso

597g

Tiempo

26h 16m

Precio

Pregunta por WhatsApp por este modelo o uno similar

Te ayudamos a conseguir este diseño o uno parecido, con precio según color y acabado

Preguntar por WhatsApp

Las dimensiones dependen del diseño. Confirmamos las medidas exactas por WhatsApp.

Ver en MakerWorld

Este diseño es de su creador en MakerWorld y se muestra solo como referencia. Tecnoprints no es dueño del modelo ni de su licencia.

Descripción

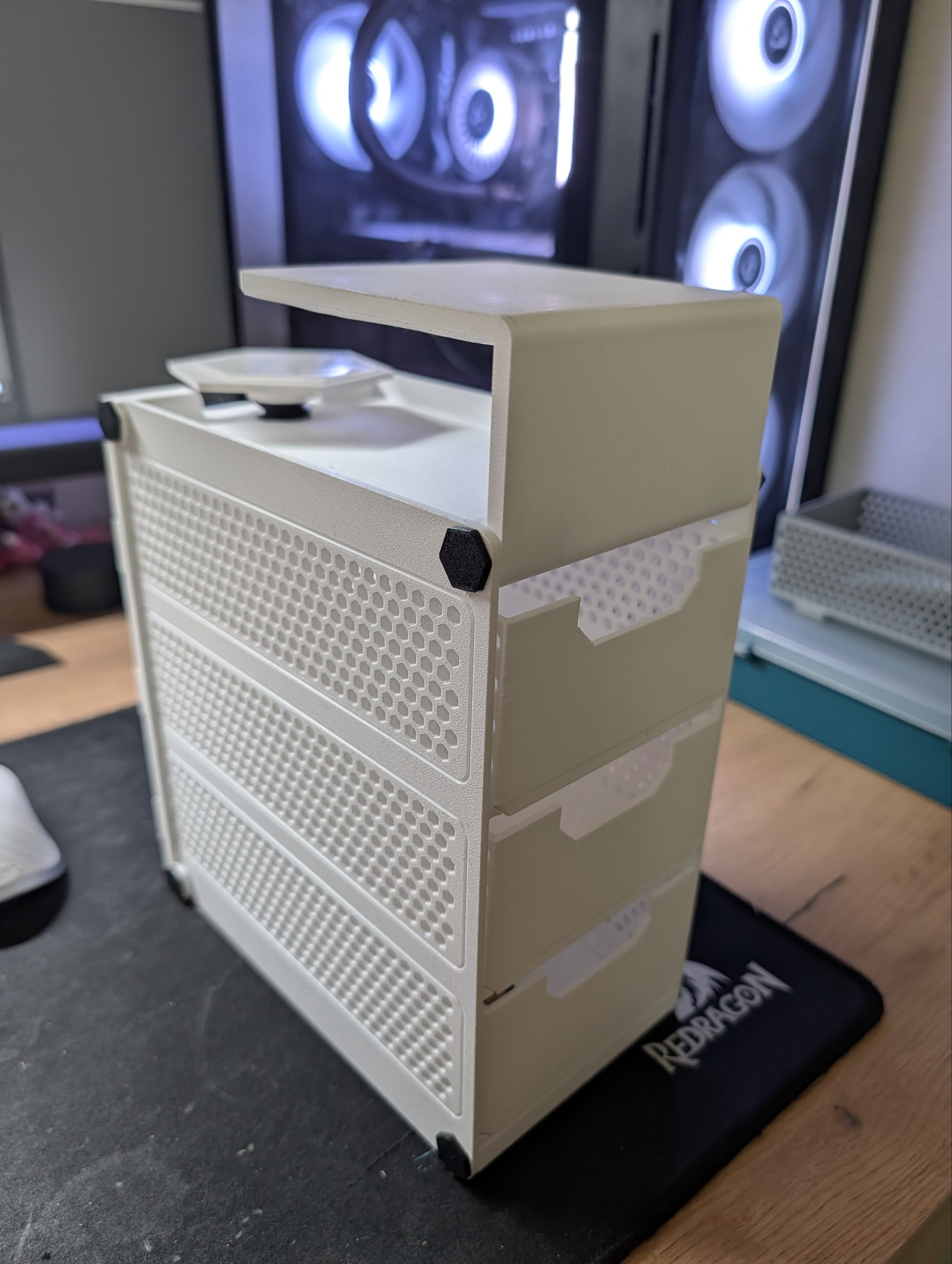

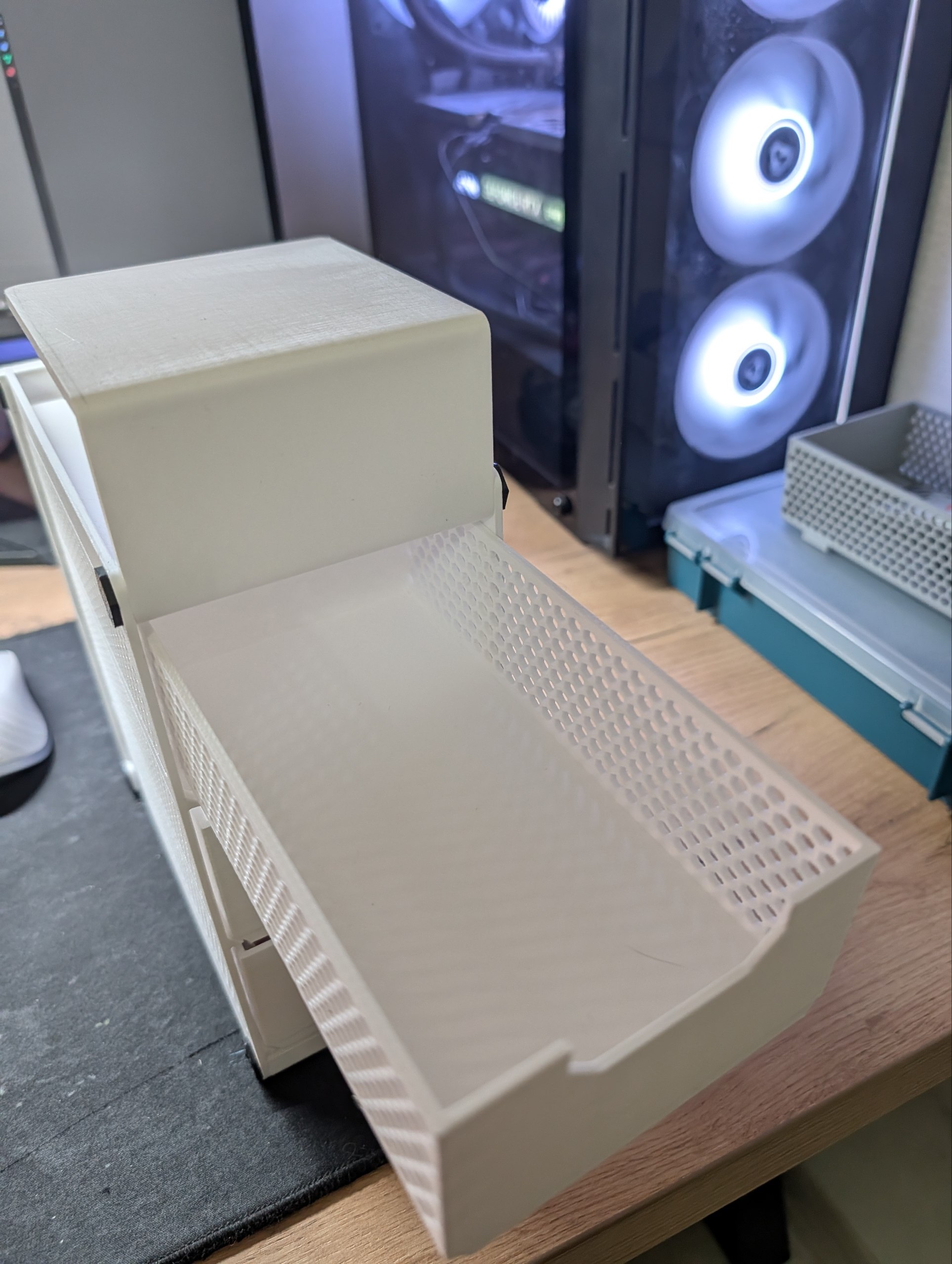

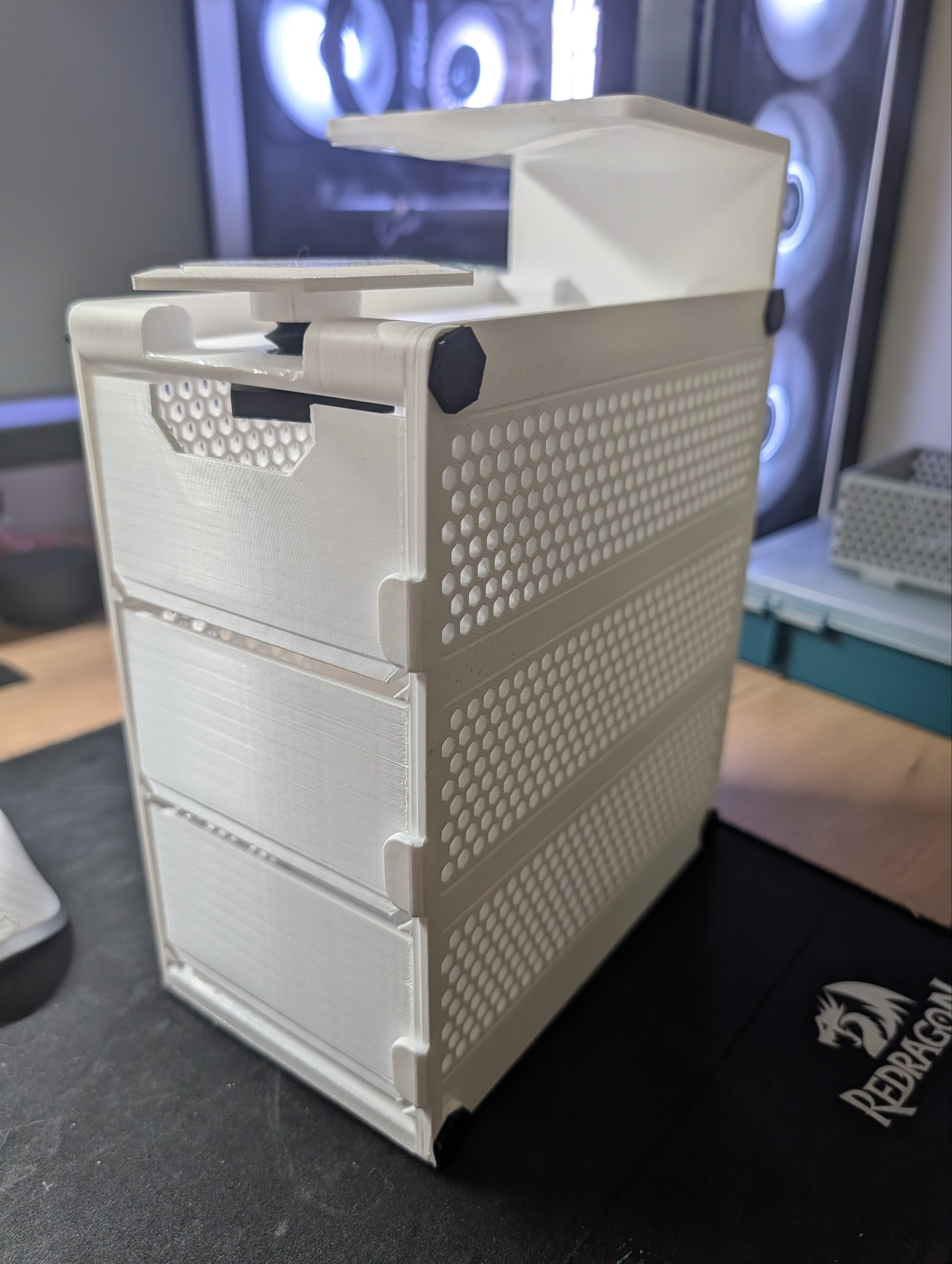

Hello! My friend asked for underdesk drawer without screwing, so I've designed an organizer with a clamp, that holds organizer tight to the table.  Model contains 10 plates, but I didn't try to print everything at once, so feel free to organize it differently.   Assembly is simple enough: 1. ShelfBase is combined with shields through screws 2. Shields at the back are also combined with backStoppers through screws 3. At the bottom shields are combined with stabilizers 4. Clamp contains two parts: screw and press. Screw is screwed into the designed hole and then press is attached to the end of the screw. 5. Insert drawers onto rails and you're done! Important note: PETG is not stiff enough, so I glued silicon picies onto parts touching table: ShelfBase and ClampPress. If you have TPU, I think it would suit better.

Tags

underdeskdrawerclampDeskOrganizershelf

Diseñador

SevenDart

Me gusta
15
Descargas
13
Impresiones
2
