FM-1 Knobs– quality fast print knob caps M-VAVE

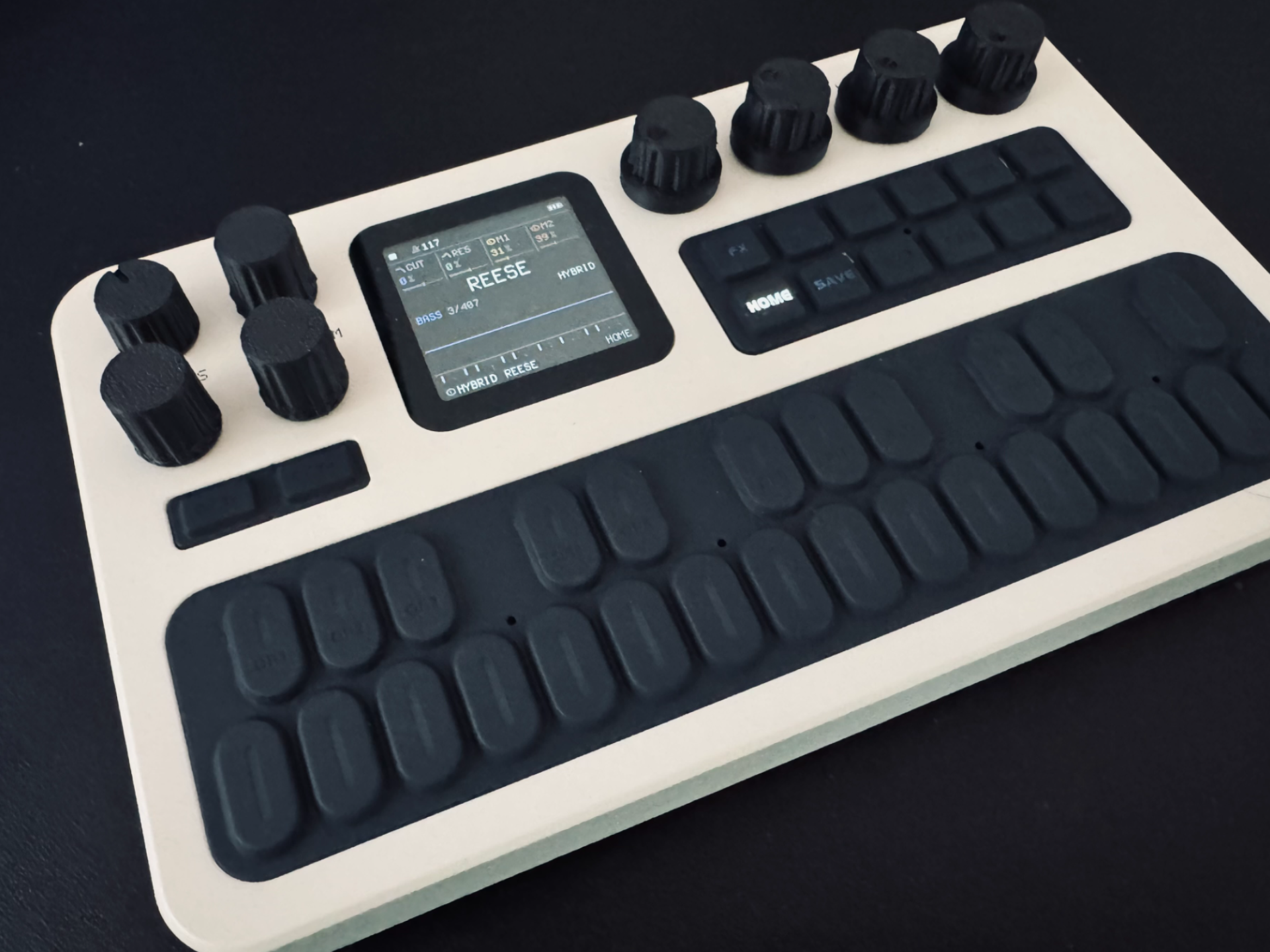

FM-1 Quick Caps: fast-printing knob caps for the M-Vave FM-1 Press-fit caps for the stock M-Vave FM-1 knobs (they can’t be removed). Single color, no supports, and the full set prints in under an hour. What’s in the set (8 caps) 4× Compact for KNOB1–4: bigger grip, soft flutes and a finger dimple so you can spin the encoders fast 3× Mini for SELECT, ALGORITHM and PRESETS: slim (Ø 11.4 mm), so the labels stay readable 1× Master for Volume: pointer groove on top and on the side, easy to feel and visible from an angle Fit Compact and Mini lock onto the teeth of the stock knobs with an 18-spline bore. No slipping, no glue. The Master is a friction fit. Print settings (tested on the A1 mini) Profile: 0.12mm Fine, 0.4 nozzle Material: PLA Supports: none Walls and infill: default (2 walls, 15%) Orientation: upside down with the top on the bed, already oriented in the file Print time: about 53 min for all 8 caps, about 7 g of filament Tips Clean the plate with dish soap before printing, because the Mini caps are tall and stand on a small footprint. If you still have trouble, add a 3 mm brim to the Minis only. If the fit is too tight, set XY hole compensation to +0.05 to +0.10 mm. If it’s too loose, use a negative value. This depends a bit on the filament. Optionally, fill the Master’s pointer groove with a paint marker. Installation Push the caps straight onto the stock knobs. For the Master, turn the volume to minimum first. Then fit the cap with the pointer at the lowest position. Boost Me
