Parametric Drawer Dividers

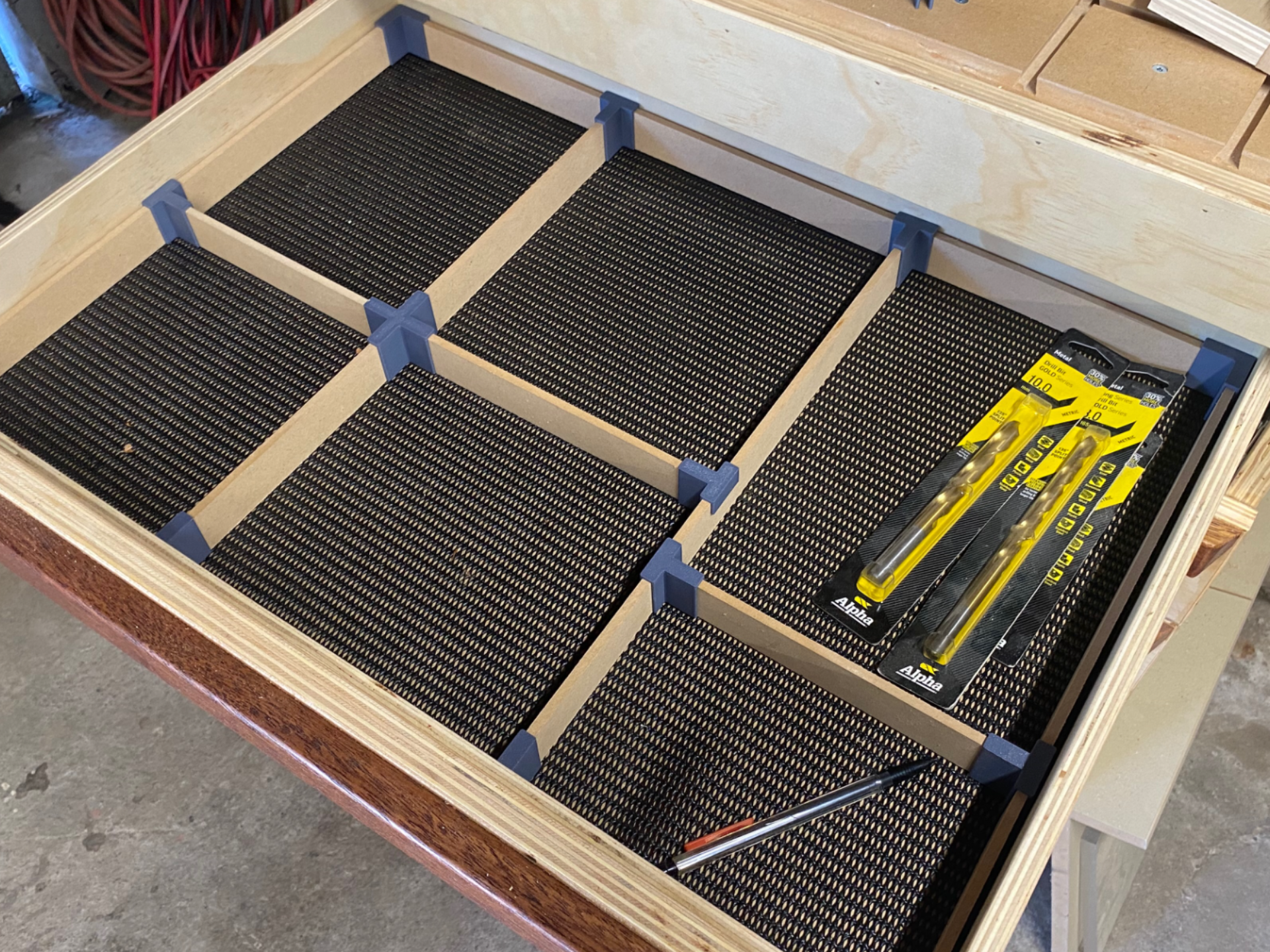

Please Note: I'm still working out how to do this parametric model stuff so if you have any feedback that'd be great. - Like seriously, if there is something not quite right, I won't know unless someone says something :) These connectors are designed so you can use an existing material to act as the divider. These prints simply connect them together. I'm definitely not the first person to do this, but I wanted a parametric version for myself and thought I'd try upload it here as well. I personally use 4.75mm MDF, but any thin, cheap sheet material will work, you just need to be able to cut it into strips.  MDF Hardboard Acrylic or Perspex Foamboard or Foamcore I recommend a divider height between 20mm and 50mm, but do whatever seems right for your needs.    Step 1: Use the test piece to determine the actual width you should use for the dividers. Because everyones printers are slightly different, and the materials are all slightly different. This should save you from wasting a bunch of filament.  Print the thickness you think you need, then adjust based on how tight it is to slide over the dividers you've made. Step 2: Use that width to print the remaining pieces you need.  I'll probably come back and add more detail once I have it working properly.
