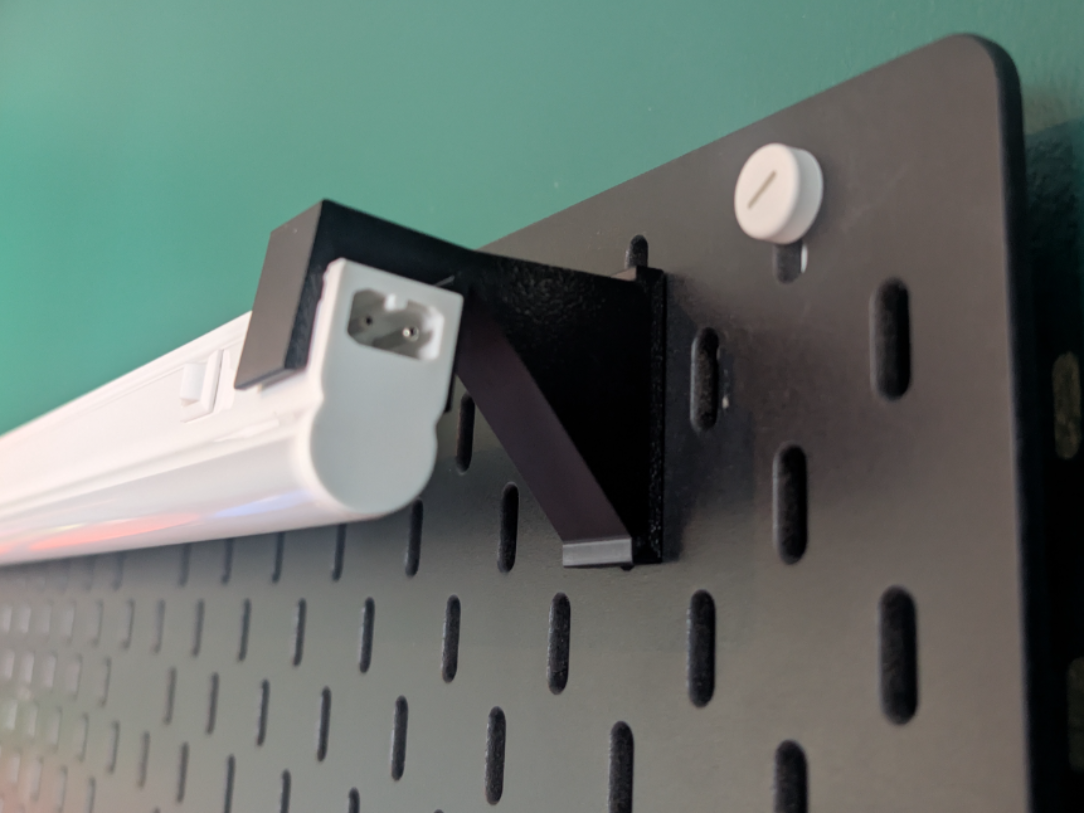

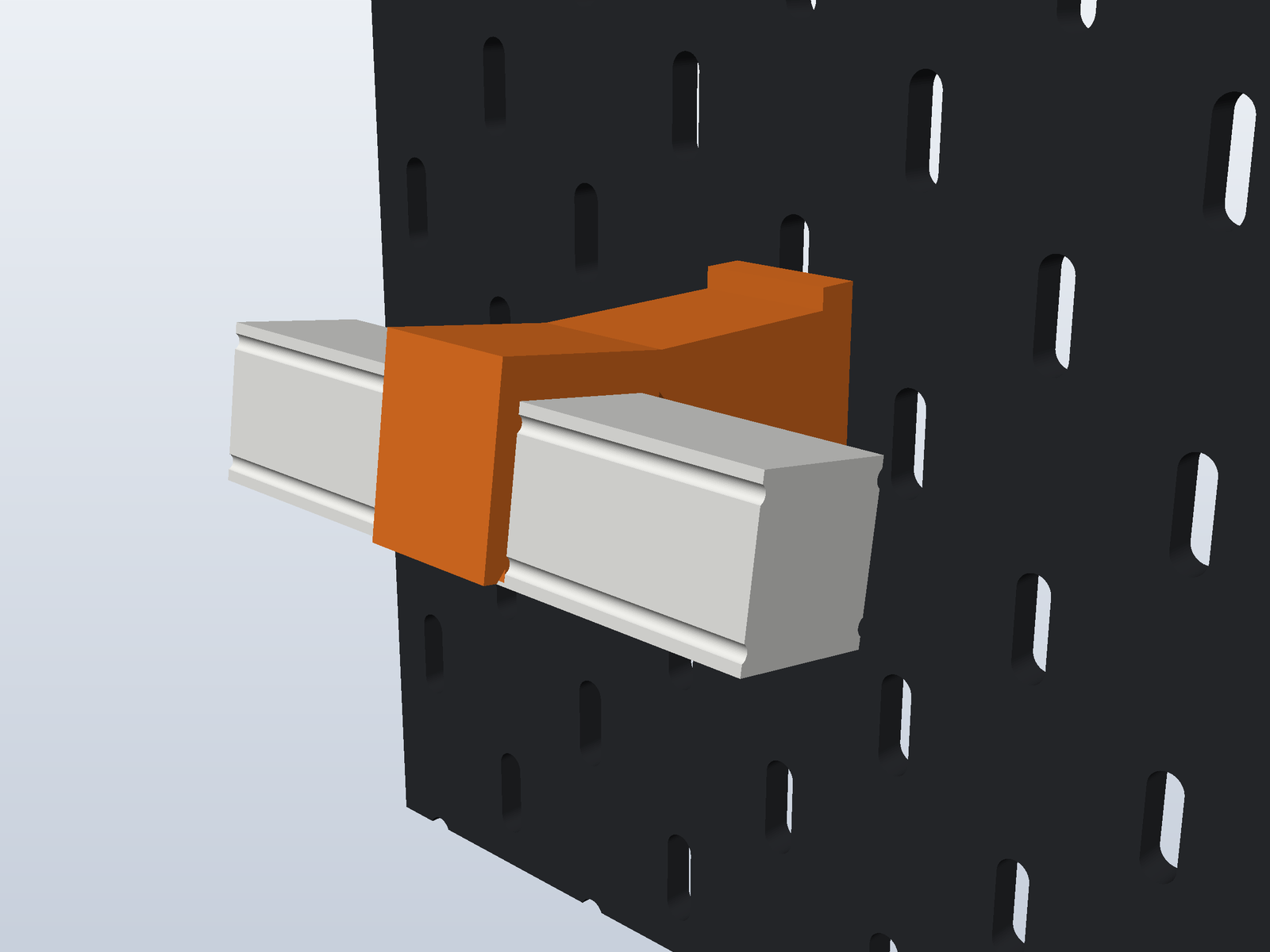

I wanted light over my Skadis board, and the Jula LED bar light (art. no. 019936) had no good way to hang on it. So I made a holder that hooks into the Skadis slots and clamps the lamp. The lamp is 19 mm thick and has a small groove along each long side. The two jaws have teeth that sit in those grooves, so the lamp is held without screws or glue. You push it up into the holder from below and it clicks into place. The lamp hangs 30 mm out from the board and is tilted 8 degrees away from it, so the light reaches further down the board. FIT - Made for a lamp that is 19 mm thick and 21 mm deep, with a groove about 2.5 mm from each edge. - Hooks match the standard Skadis slots (two hooks, 40 mm apart). - The holder is 20 mm wide. I use two per lamp. WHICH LAMPS FIT? It fits the Jula / Anslut LED bench lights. They all have the same profile and only differ in length: 91 cm (019936): https://www.jula.se/catalog/el-och-belysning/belysning/inomhusbelysning/bank-och-skapsbelysning/bankbelysning-led-019936/ 56 cm (019937): https://www.jula.se/catalog/el-och-belysning/belysning/inomhusbelysning/bank-och-skapsbelysning/bankbelysning-led-019937/ 31 cm (019938): https://www.jula.se/catalog/el-och-belysning/belysning/inomhusbelysning/bank-och-skapsbelysning/bankbelysning-led-019938/ If you have a similar lamp from another brand, measure the thickness and groove positions and leave a comment. I may be able to make a variant. Not affiliated with IKEA or Jula. Skadis is an IKEA product.
