Parametric Storage Box

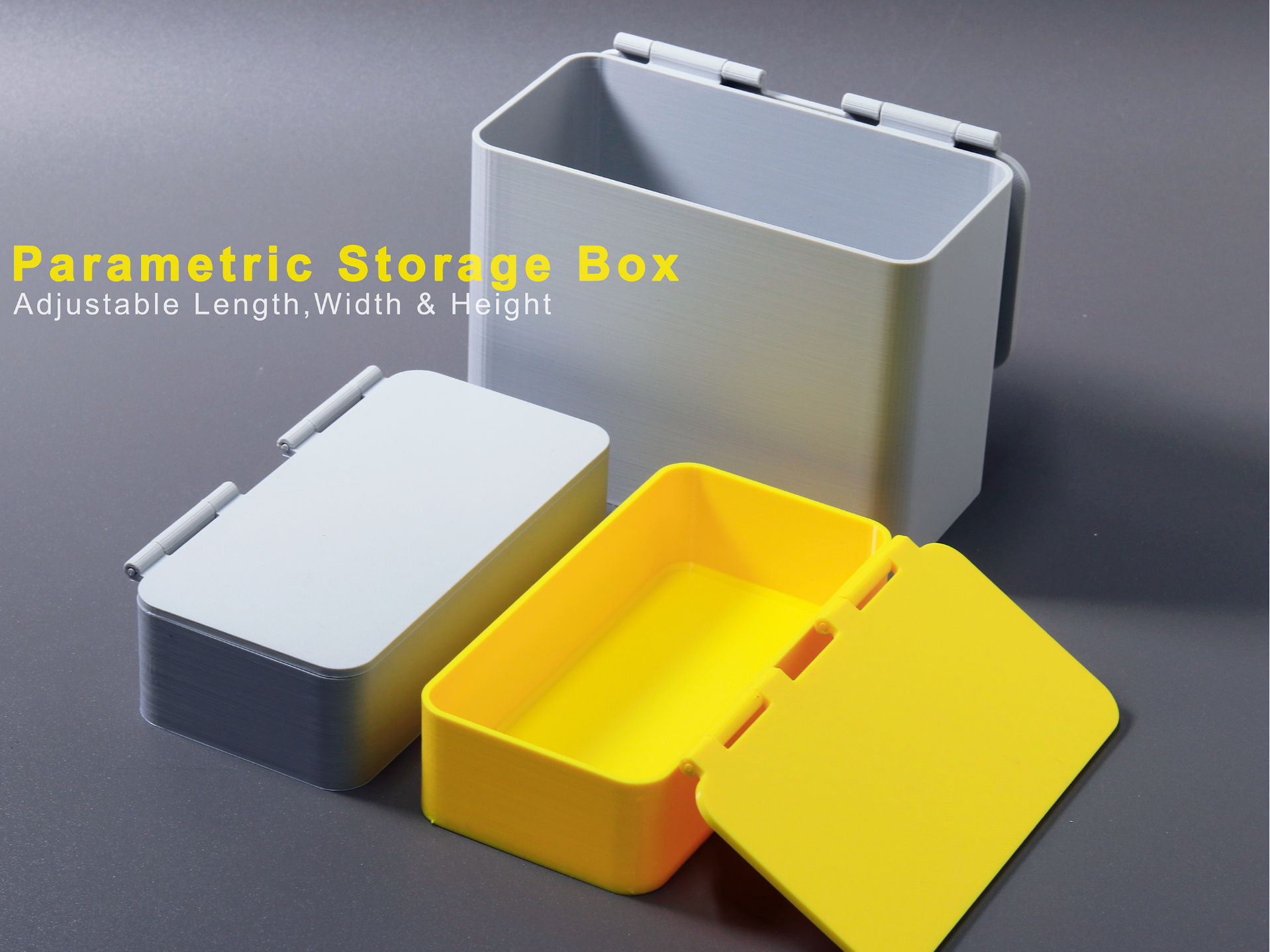

Parametric Storage Box A parametric storage box featuring an integrated hinged lid. The box's length, width, and height can be customized to suit your needs.     Parameters & Dimensions Length: For L ≥ 90 mm, the Dual-Hinge Version is recommended. For L < 90 mm, interference between the two hinges may occur.                For 50 mm ≤ L < 90 mm, the Single-Hinge Version is recommended.   Width: Freely adjustable, with no specific limitations. Height: Freely adjustable, with no specific limitations. All three parameters refer to the external dimensions of the box. Internal Dimensions Internal Length: Length − 3.36 mm Internal Width: Width − 3.36 mm Internal Height : Height − 3.8 mm Material Recommendations Recommended:   PLA Basic or PETG Not Recommended:   PLA Silk, as it may be more prone to cracking. PETG Printing Tip:   For larger boxes, a fully enclosed 3D printer is recommended to achieve more consistent printing results. Printing Instructions After generating the parametric model in your desired size, export it as a 3MF file for direct printing. Alternatively, you can use the 3MF print profile provided with the model, which includes preset printing parameters. Recommended Layer Height: 0.2 mm (default). This layer height provides more accurate filament insertion hole dimensions, making it easier to insert the filament.   Assembly Instructions: See the diagrams below for assembly details.
