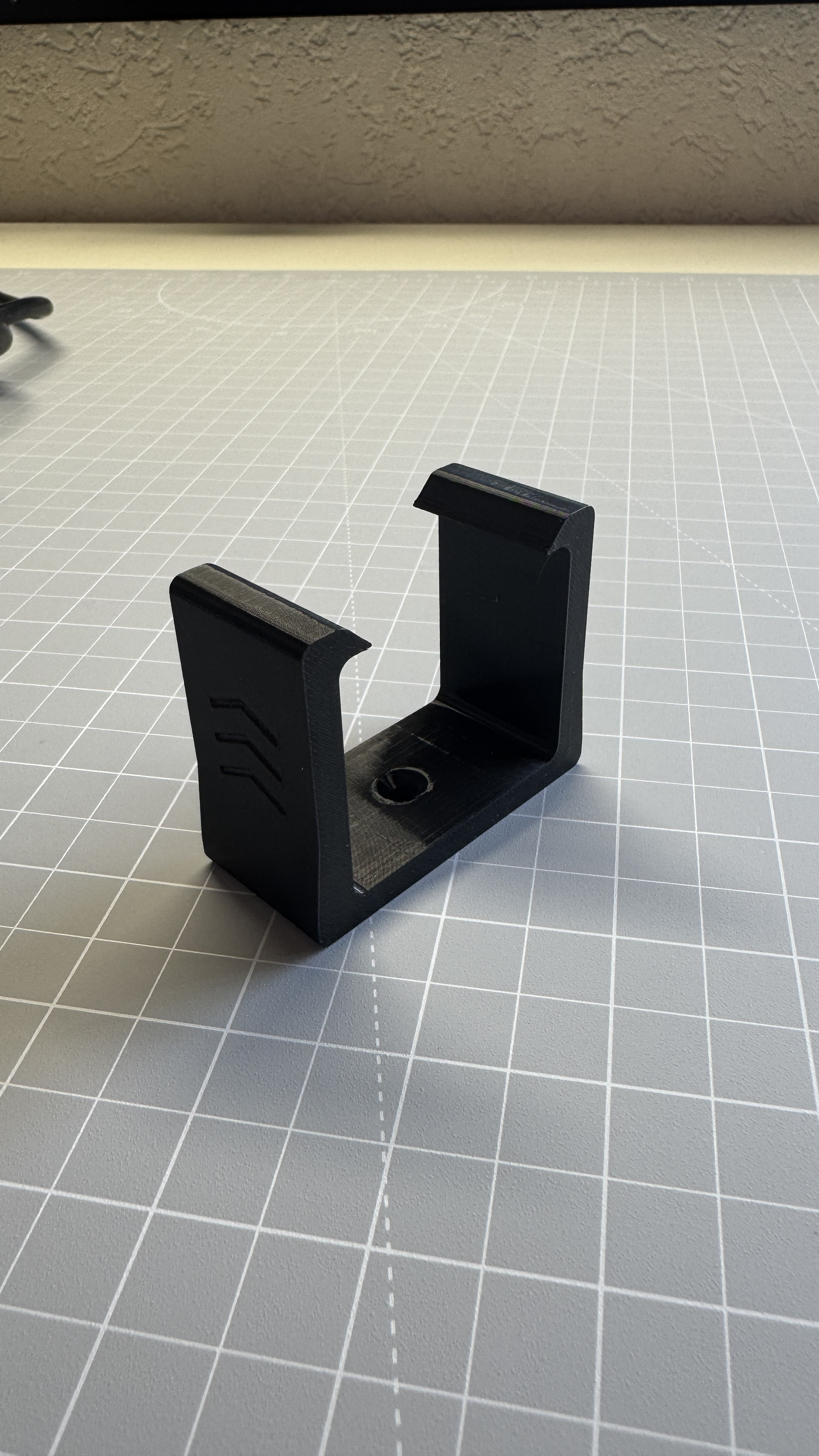

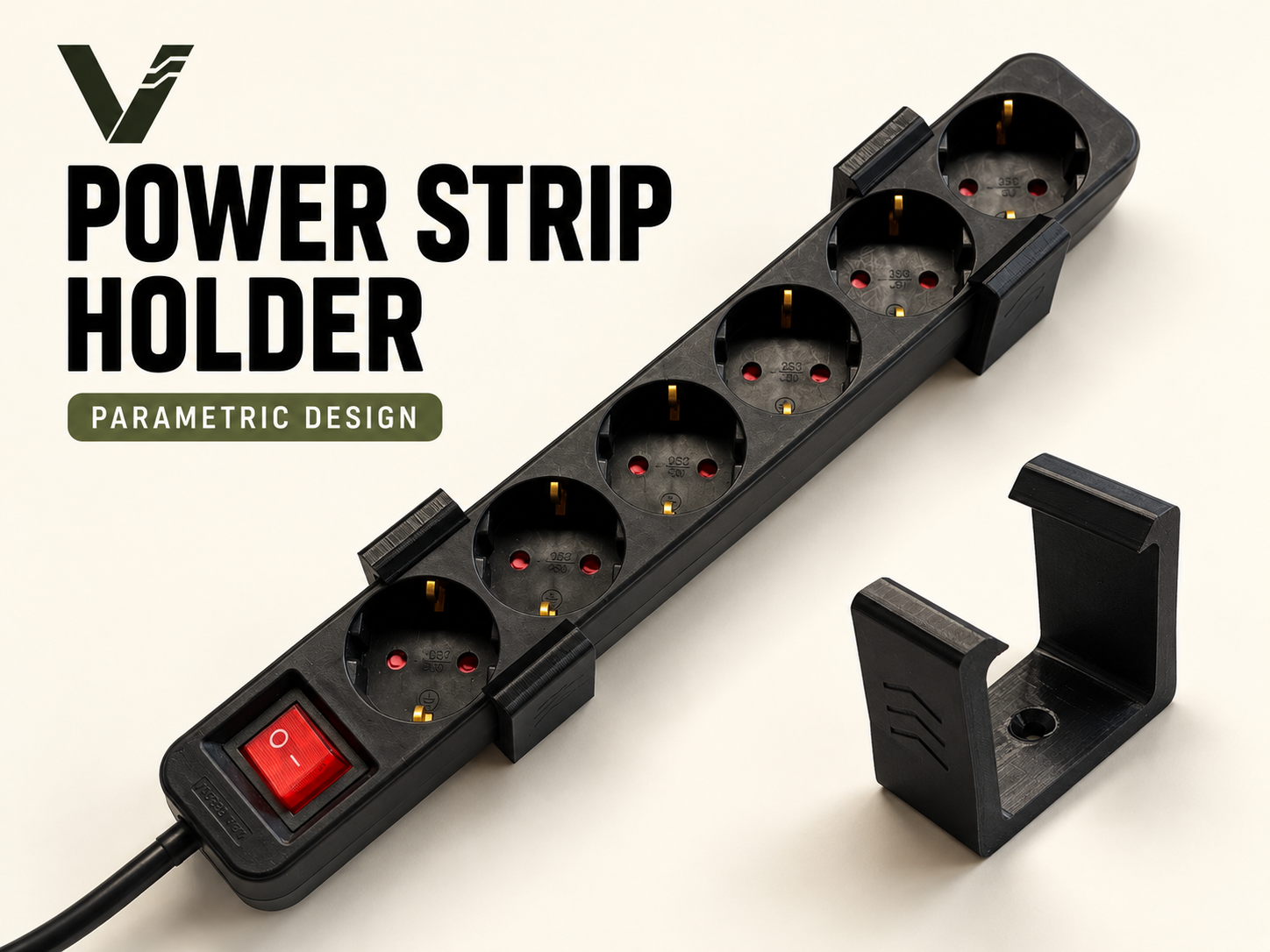

Parametric Power Strip Holder - Custom Fit Mount

Your power strip. Your dimensions. Keep your power strip in place with a clean, customizable mounting bracket. Adjust the dimensions to your housing, choose an exterior pattern, and print the holders to suit your setup.   Features Custom fit: adjustable inside width and height. Substantial walls: 6 mm sides and a 5 mm back wall by default. Retaining hooks: 6 mm inward reach with flat bearing surfaces. Adjustable radii: customize the upper hook corners, hook roots, inner back corners and outside edges. Screw mounting: adjustable hole diameter, countersink diameter and countersink angle. Four finishes: smooth, Chevron, stripes or dots. Single-piece design: no assembly required for each bracket.   Boost MeBoost me for more functional Models:) Customize your holder Open the SCAD file in a compatible parametric model maker and enter your dimensions. Default settings: SettingDimensionInside width49.5 mmInside height40.2 mmHolder width along the strip28 mmSide wall thickness6 mmBack wall thickness5 mmHook overhang per side6 mmScrew hole diameter4.5 mmCountersink diameter9 mmNo extra clearance is added automatically. The width and height you enter directly define the space between the straight inside faces. Include any fit allowance you need in those dimensions. Printing and fitting Measure your power strip’s housing width and height. Adjust the model and print one holder for a fit check. Check that the holder clears the housing corners and leaves room for your plugs. Print a second holder and position the pair to suit your installation. Print with the C-shaped end face on the build plate, as oriented in the supplied STL. Check the horizontal mounting hole and countersink in your slicer for local support requirements. The holder slides onto the end of the power strip; it is not a snap-fit clip. Oversized end caps may prevent installation. Check screw access before mounting and use screws suitable for your mounting surface. Make it yours Choose a subtle smooth finish or add an engraved pattern. Match the filament to your desk, workshop or cable setup. Printed your own version? Share a Make with your dimensions and setup!
