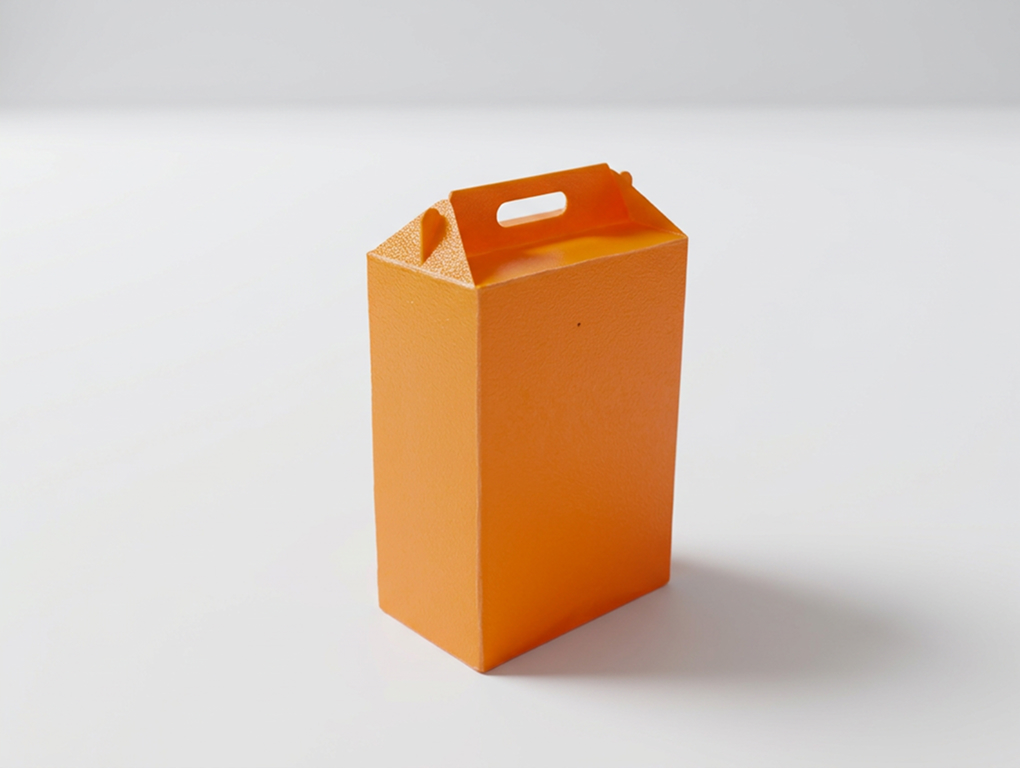

Customizable Foldable Gift Box with Handle

Boost MeIf you liked the model, consider supporting me with a boost!Create a foldable gable box using your own inside length, width, and height. The box prints flat as one piece without supports, with built-in handles, a tab-and-slot side seam, and a locking bottom.   Fold along the thin grooves to form the box. The two handles meet at the top, and the slotted gable panels engage the curved handle hooks to close it. The design uses built-in locks and needs no glue, screws, or separate hinges. Customizing the box Box dimensions: Set the inside length, width, and straight-wall height from 25 to 100 mm. Length runs along the handle; width runs across the two top panels. The handle adds height above the box. Handle size: Adjust the handle height and finger-opening width and height. Leave these at 0 for automatic sizing. Handle shape: Adjust the taper angle to change how much the top of the handle narrows. Rounded corners: Adjust the general corner radius. The handle hooks and gable tips keep their curved shape. Lock fit: Increase slot clearance if the tabs are hard to insert. Reduce it if the fit feels loose. Thickness and printing Choose a layer height of 0.16, 0.20, or 0.24 mm. Set both the first-layer and regular layer heights in your slicer to the same value selected in the generator. Sheet layers control panel thickness. Hinge layers control the fold bands and side-seam tongues. Start with two sheet layers and one hinge layer. At 0.20 mm layer height, this gives 0.40 mm panels and 0.20 mm folds.
