Parametric Modular Tube - Knurled - Any Length

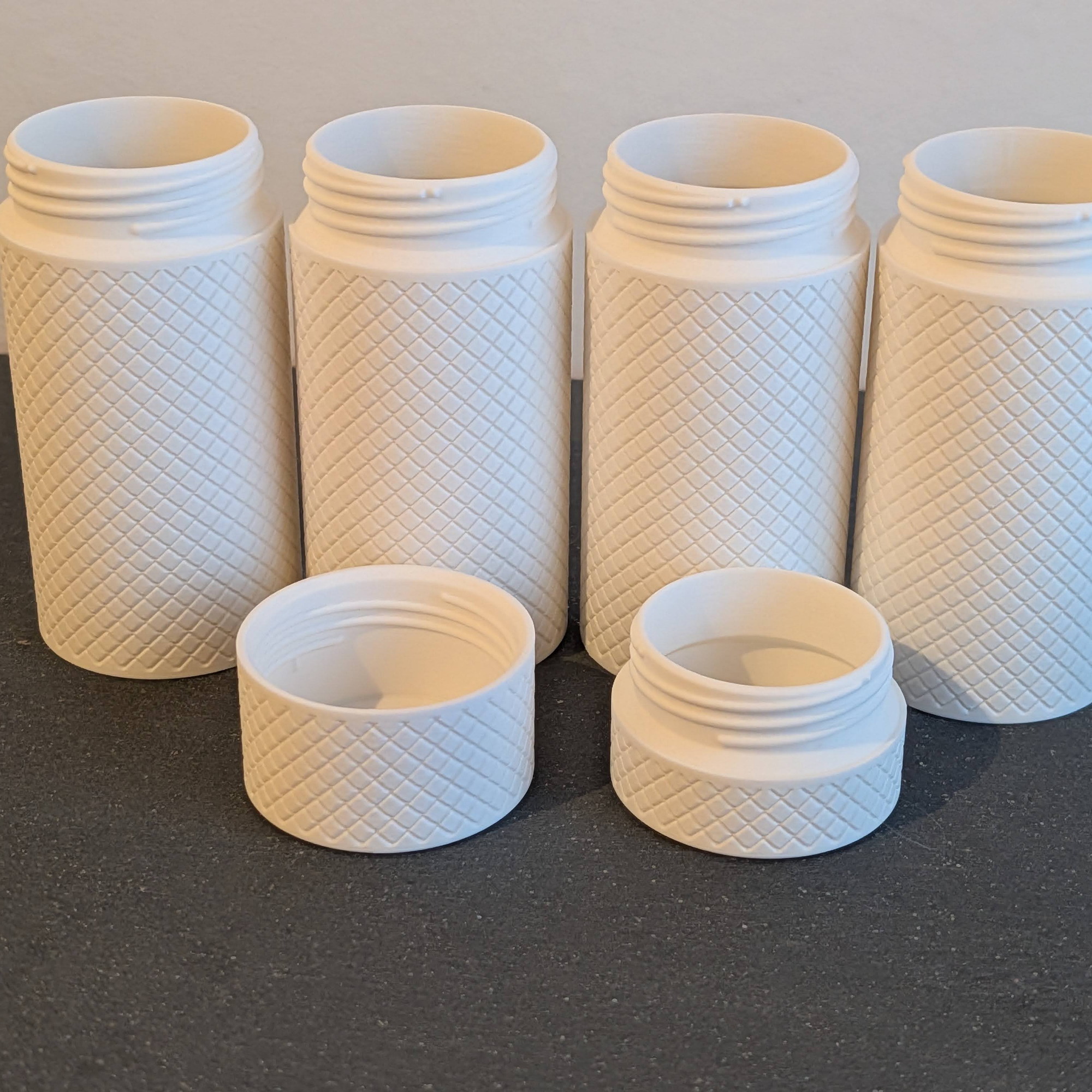

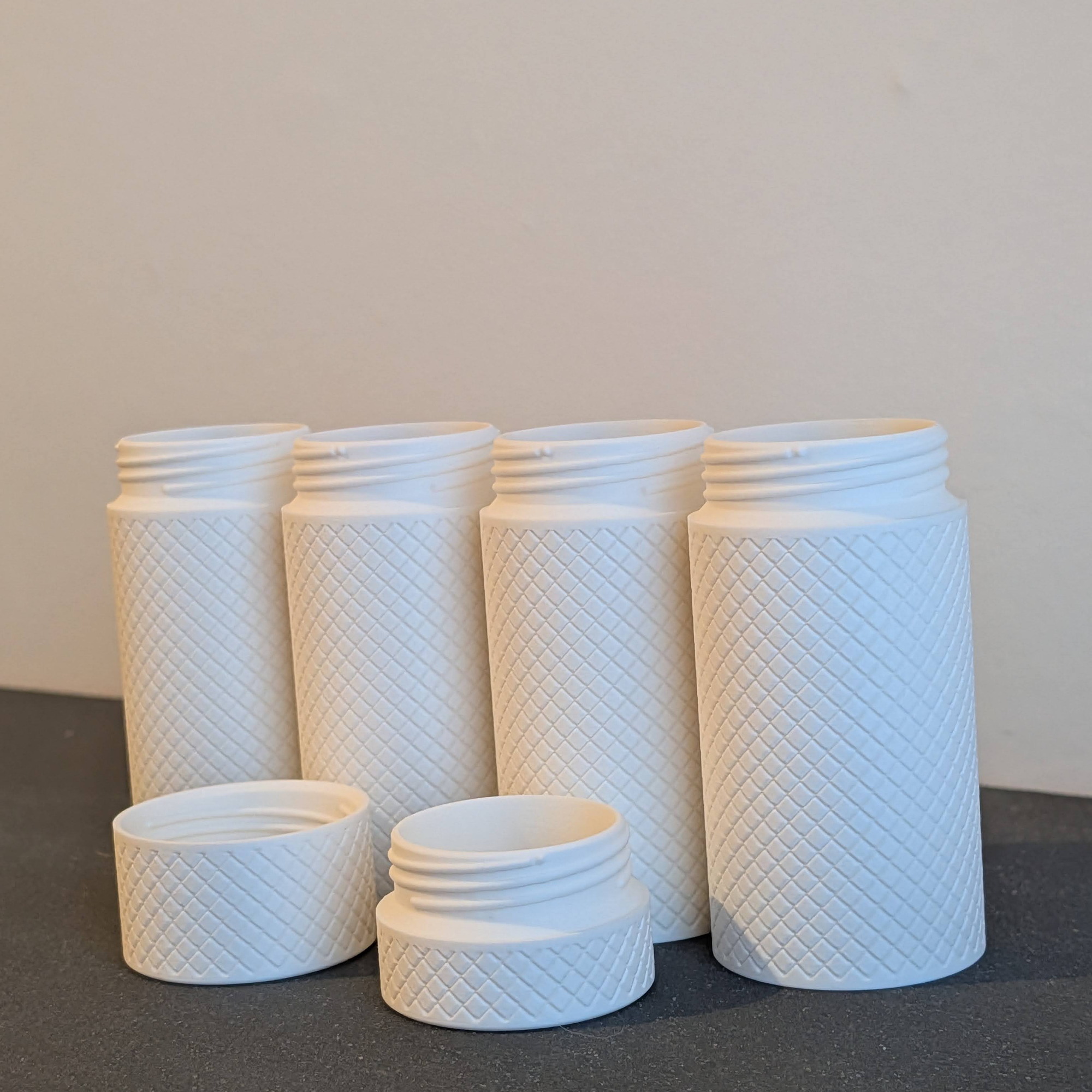

The Quiver, with grip Same tube, same thread, knurled outside. Set the length and the inner diameter, hit Generate. Screw the segments together, cap both ends. Easier to unscrew, and the knurl hides the Z seam. It mixes with the plain version The thread is unchanged, so knurled and smooth parts are fully interchangeable. A knurled cap fits a smooth tube and the other way round.   Wall thickness The knurl cuts 0.8 mm into the outer wall, so the wall in a groove is 0.8 mm thinner than the number you set. At the minimum extra thickness of 0.4 mm that leaves 1.2 mm, about three extruded lines. Fine for storage. Raise extra thickness for a stiffer tube. What you can set ParameterRangeWhat it doeslength30 to 3000 mmUsable space inside. Threads and caps are not counted.extra top cap length0 to 150 mmMakes the top cap taller than the thread so content is reachable. Adds to the usable length.inner diameter15 to 200 mmThe narrowest opening. Whatever you store has to fit through it.max segment heightup to 220 mmLongest a single segment may be. Lower it for more, shorter segments and less toppling.extra thickness0.4 to 2.8 mmAdded to the 1.6 mm base wall. Minus 0.8 mm in the knurl grooves.Two entries in this listing   Quiver Knurled - no supportDefault.Quiver Knurled - supportSacrificial brace inside each segment.Want labels on the cap? The OpenSCAD cap generator is on the plain listing and its caps fit these tubes. Printing Read the PDF guide (English, Deutsch, 中文, on the plain Quiver listing). The Customizer does not carry over plate layout or print settings, and the parts arrive as one merged object. Split to Objects, arrange, then: Brim type: Inner brim only on the segments. None on the caps. Seam position: Back. Sparse infill: 10% Lightning. Gyroid or grid sends the toolhead darting across the part every layer, and on a tall segment that is what tips it over. 0.2 mm layers, 2 walls, no supports, standard PLA. If a segment topples: clean plate, then lower max segment height, then add a brim, then use the support version. Assembly Every segment is identical, so they go in any order and a cap fits either end. A long tube can be rebuilt into two short ones with an extra pair of caps. The thread is 3-start with a detent, so it seats firmly and does not back out. Three seating positions 120° apart per joint. The knurl camouflages the seam, so take whichever feels right. Dry assembly stays adjustable. A drop of glue makes it permanent and stiffer. Tell me what you want next I make things because I need them, then share them in case someone else does.   MODYLO is the standard behind all my designs: often geometric, always parametric. That makes it easy to put a new look on this tube. Have a look at my planter collection — if there is a pattern you would like to see on a tube, say so and I will add it.   And if you print one, tell me what goes inside 🙏
