Parametric Screw and Nut Generator M2-M20

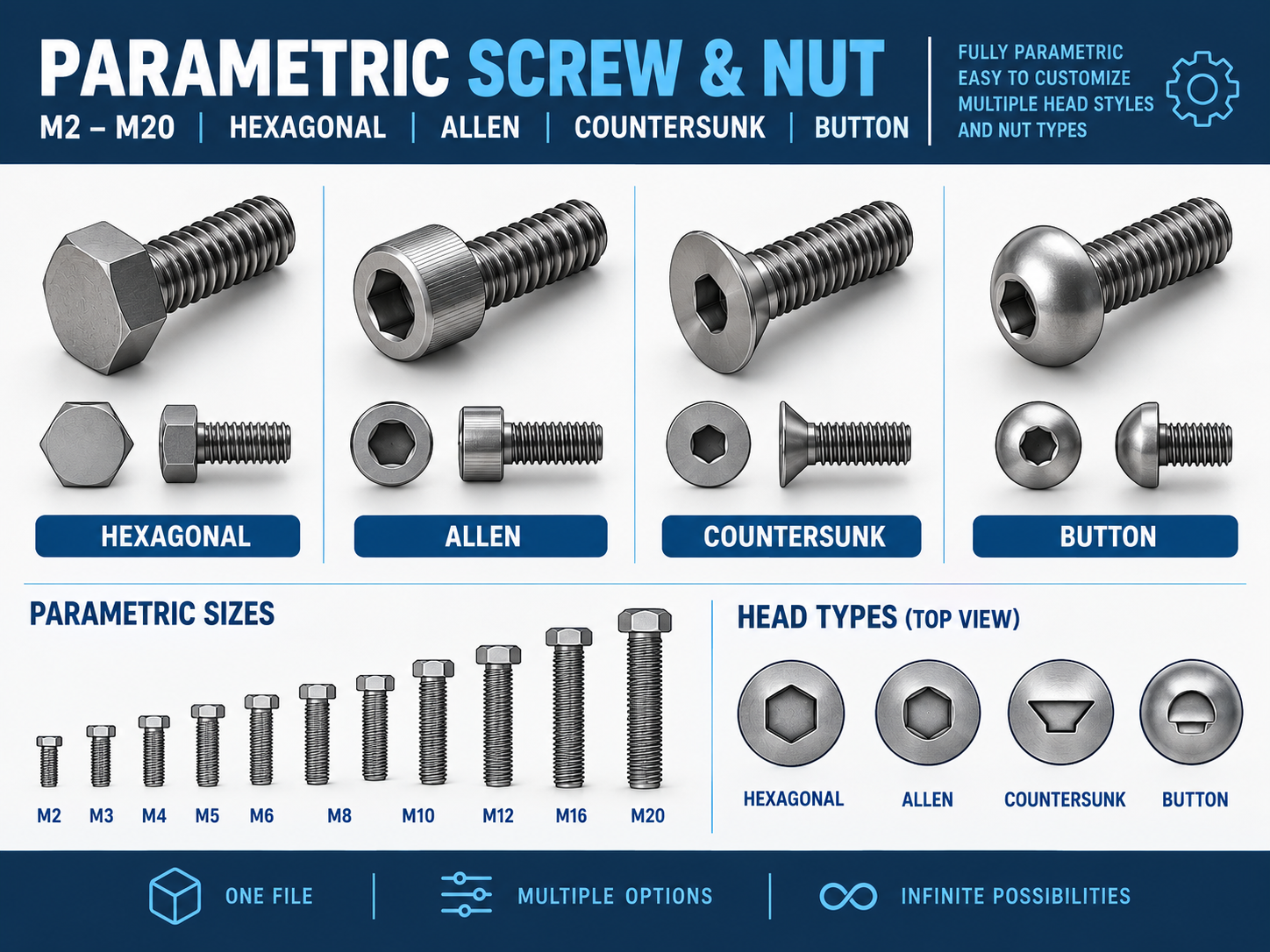

Fully Parametric Metric Screw, Bolt & Nut Generator A highly customizable OpenSCAD script for generating standard ISO metric screws, bolts, and matching nuts. Fully compatible with MakerWorld’s MakerLab Customizer, allowing you to generate exact custom hardware directly in your browser. Key Customization Features Adjustable Dimensions:Thread Length: Smoothly adjust thread length from short machine screws to long threaded bolts. Thread Diameter & Pitch: Set custom metric diameters (M2, M3, M4, M5, M6, M8, M10, etc.) and fine-tune thread pitch for standard or custom fits. Head & Drive Options:Head Styles: Hex head, Socket head (Allen), Button head, or Countersunk. Drive Types: Standard External Hex or Internal Hex (Allen). Matching Nuts & Washers:Generate perfectly paired hex nuts, locknuts, or custom washers with matched tolerances. Adjustable Tolerance / Clearance slider to ensure smooth thread engagement out-of-the-box on FDM printers. Recommended Print Settings Layer Height: 0.12 mm – 0.16 mm (lower layer height improves thread accuracy). Walls/Perimeters: 3 to 4 perimeters for structural strength. Infill: 25% – 100% (use 100% infill for high-stress bolts). Supports: Not required when printed vertically with head on the build plate.
