Modular Wall Bracket – Hidden Screw Design

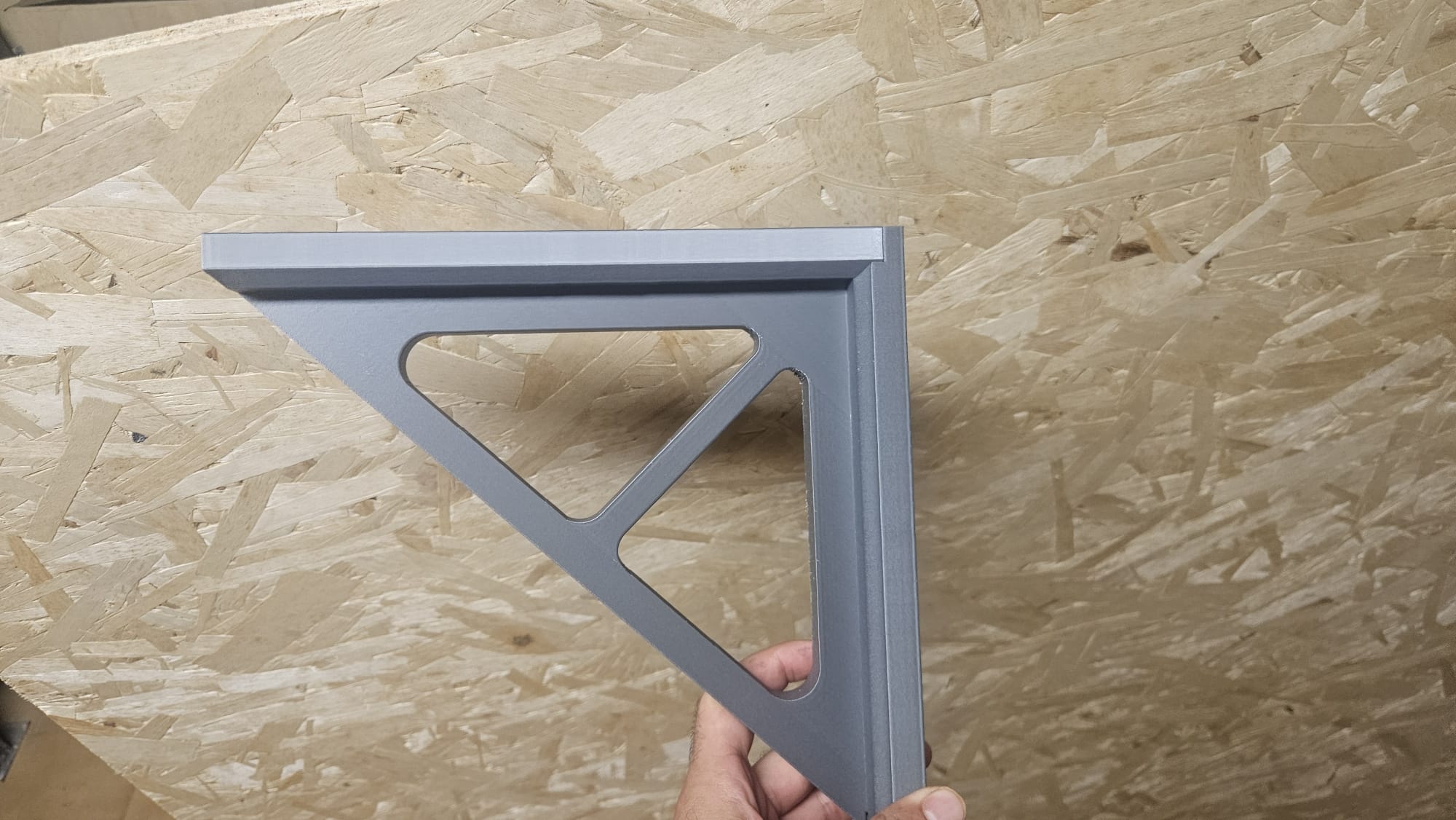

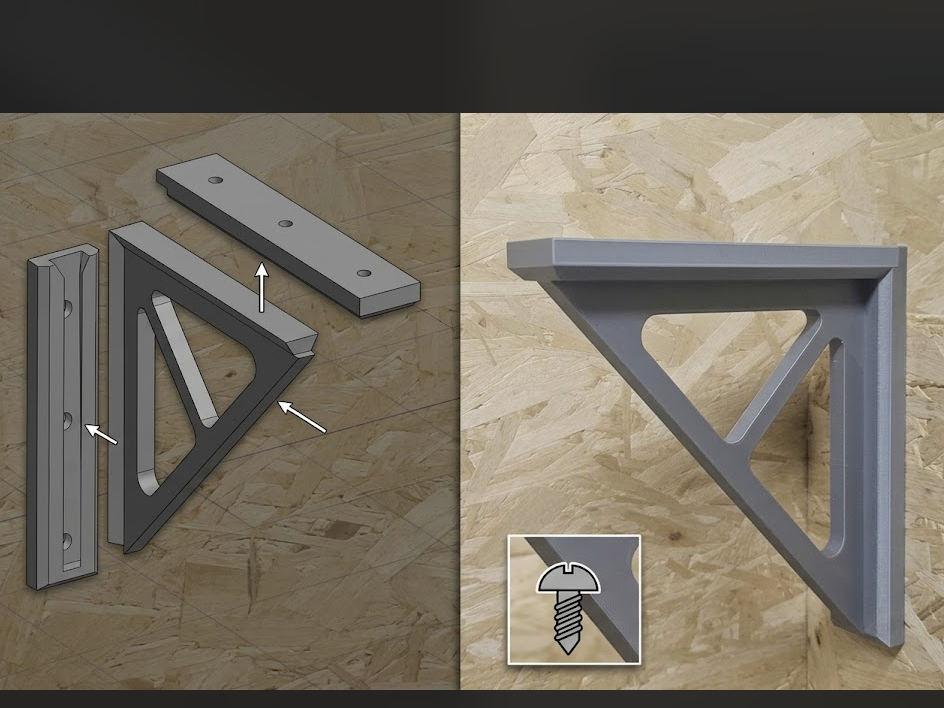

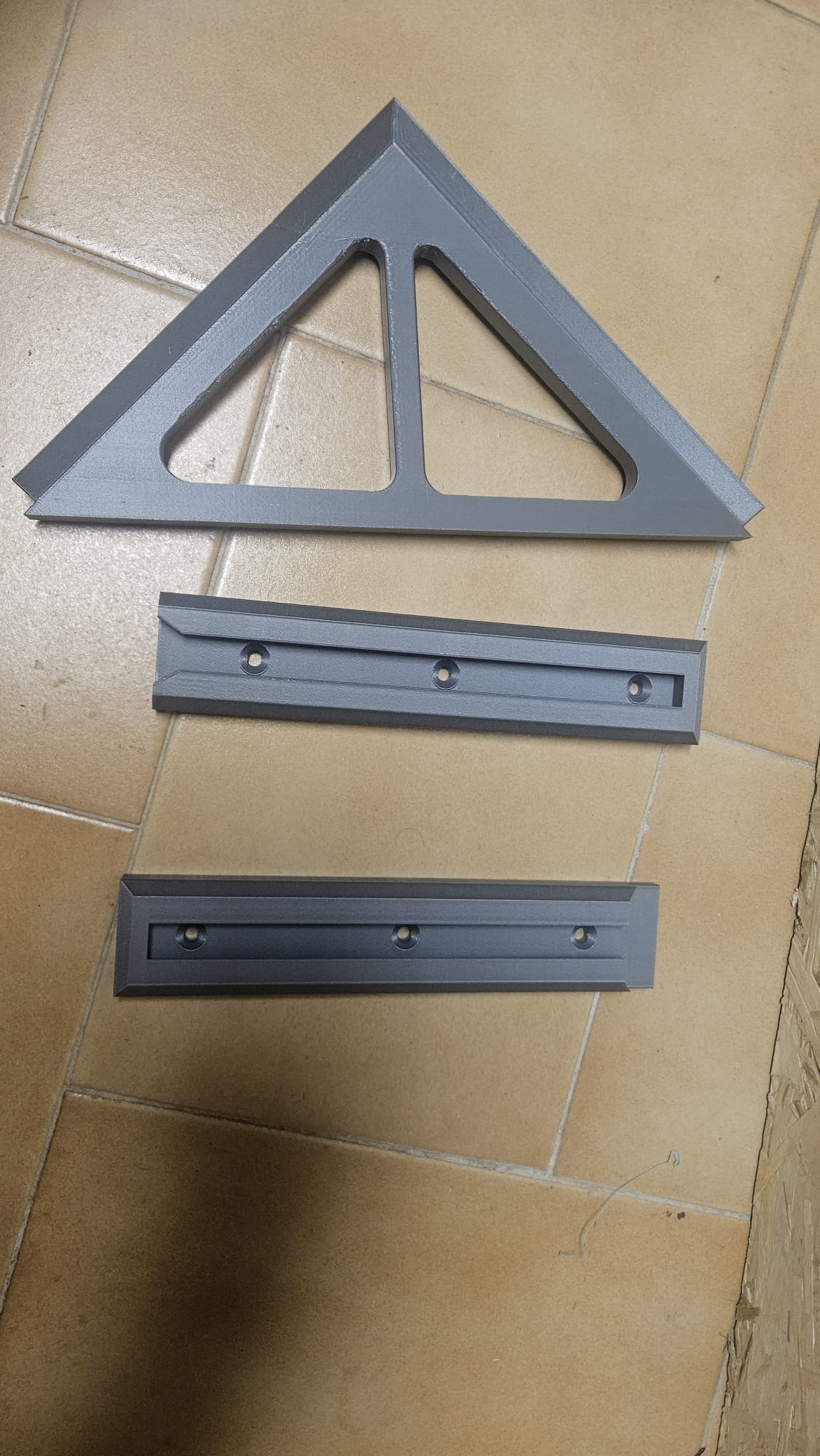

A strong and clean 3-piece modular L-bracket designed for 3D printing and easy assembly. The bracket is divided into three separate parts: the main support structure, the wall mounting piece, and the top cover. This design allows the mounting screws to be hidden once the bracket is fully assembled, giving the finished bracket a much cleaner and more professional appearance. The main structure features a reinforced triangular design with large openings to reduce material usage while maintaining rigidity. Features 3-piece modular design Hidden mounting screws Clean and minimal appearance Reinforced triangular structure Designed for easy assembly Can be printed without supports when oriented correctly Lightweight compared to a solid bracket Suitable for shelves, furniture and general DIY projects Easy to customize in size DIMENSIONS: 24CM X 22.8CM, (9.45 × 8.98 in) Tested with a 20 kg (44 lb) load   The individual parts can be printed separately and assembled after installation. The modular construction also makes it easier to print the bracket on smaller build plates. Recommended materials: PETG, ASA or other strong filaments depending on the intended load. Load test: The bracket has been tested with a 20 kg (44 lb) load. Actual load capacity may vary depending on the filament, print settings, wall/floor material, mounting hardware and installation method. Important: This is a 3D-printed bracket. Always consider a suitable safety margin and test progressively before using it for heavy or critical loads.
