Corner Clamp for Drill & Screw

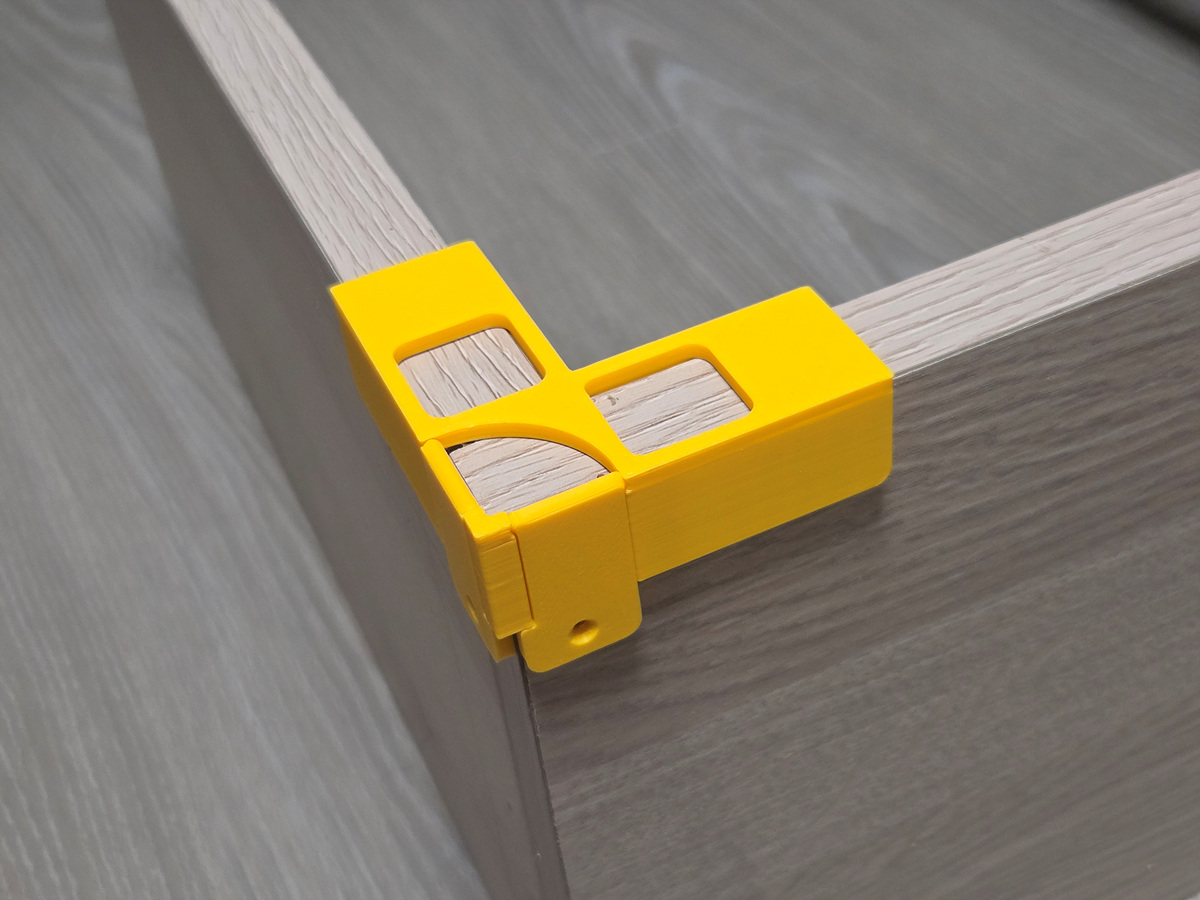

Parametric Corner Clamp & Self-Centering Drill Guide (Print-in-Place) A smart, all-in-one corner clamp designed for woodworking and DIY cabinetry. It features integrated, flip-away drill guides that guarantee pilot holes dead-center on your boards, allowing you to clamp, drill, and drive screws in a single seamless workflow without ever unclamping your workpiece. Key Features Print-in-Place & Zero Assembly: Ready to use straight off the build plate. The functional hinges print fully assembled with no hardware, screws, or pins required. Flip-Away Drill Guide: Drill your pilot hole through the guide, flip the flap open, and drive the screw immediately with your bit holder. The clamp holds the corner rigid the entire time to prevent misalignments. Self-Centering Precision: Channels and guide holes are aligned to ensure your fasteners enter precisely through the center line of the board thickness. Dual-Side Symmetrical Setup: Foldable guides on both wings allow fastening from either side, adapting easily to any joint order or orientation. Clamp & Glue Relief Openings: Base cutouts provide ample clearance for F-clamps and C-clamps while preventing corner squeeze-out glue from sticking to the jig. Full Parametric Freedom: Tailor the model to any custom material thickness, joint depth (margin from board edge), or overall clamping length. Included Profiles & Files 15mm Preset Plate: Optimized for standard 15mm plywood and MDF boards. 18mm Preset Plate: Optimized for standard 18mm cabinetry and casework stock. Parametric Source File: Adjust key parameters to match non-standard sheet goods or heavy-duty dimensions. Recommended Print Settings Material: PLA, PETG, or ABS (PETG recommended for higher flex fatigue resistance). Walls / Perimeters: 4 to 5 walls (critical for rigid clamping force and guide wall durability). Infill: 25% or higher (Gyroid or Grid). Layer Height: 0.20 mm. Supports: None (fully Print-in-Place).
