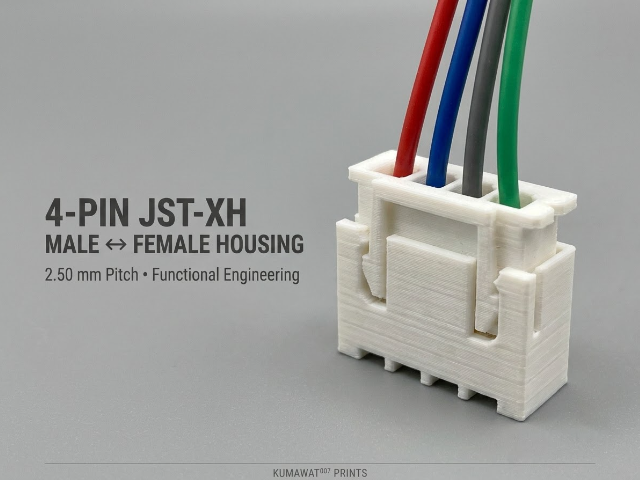

4-Pin JST-XH Connector Housing | 2.50mm Pitch

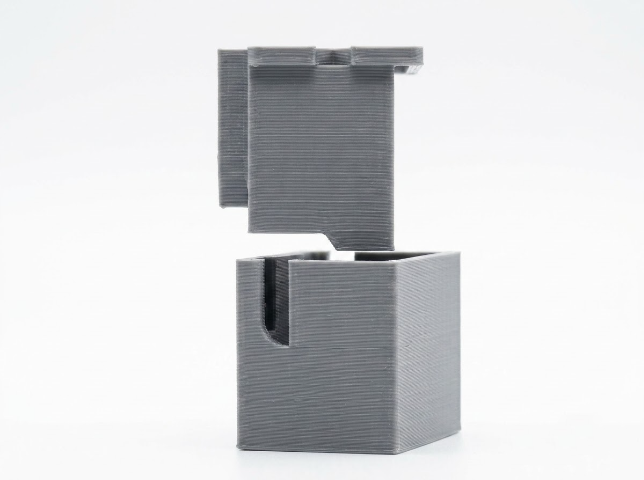

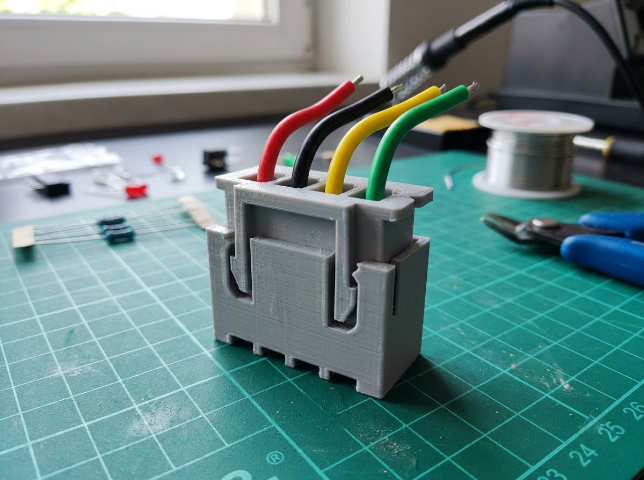

4-Pin JST-XH Connector Housing — 2.50 mm Pitch Overview A fully functional, precision-engineered 4-pin JST-XH connector housing (Male and Female parts). Designed for a flawless snap-fit connection. Perfect for custom RC drone builds, 3D printer motherboards, stepper motors, and DIY electronics.   Features • 4-position connector layout • 2.50 mm pitch XH-compatible geometry • Modular housing design • Designed for FDM 3D printing • Suitable for PLA and similar filaments     Recommended printer: Bambu Lab A1 or equivalent FDM printer Material shown: PLA   Important: JST XH is officially a 2.50 mm pitch connector family. Verify the dimensions and compatibility of your specific connector before printing large quantities.   Printing Use the included print profile as the reference for initial testing. Because connector fit depends on the exact mating component and printer/material/tolerance settings, print one test piece before producing multiple units. Print Settings (Tested on Bambu Lab A1) Material: PLA / PETG (PETG recommended for higher heat resistance) Layer Height: 0.12mm or 0.16mm (Do not use 0.20mm; you will lose the mechanical tolerance on the locking latch) Wall Loops: 3 (For structural strength) Infill: 100% (It's a tiny part, make it solid) Supports: Tree(Slim)   Hardware Required You will need standard JST-XH female metal crimp terminals and a crimping tool to attach your wires before inserting them into this housing. 4 × compatible male contacts/pins 4 × compatible female crimp terminals Suitable stranded wire Male To Female Cable Jumper Wire Multicolor - https://amzn.in/d/05rxbx5g    Use Intended as a functional connector-housing / mounting solution for compatible XH-style components.   Please do not assume compatibility with every 2.5 mm connector sold as “JST-XH”; third-party clones can vary dimensionally. That last warning is useful because “JST-XH compatible” and “official JST part” are not necessarily the same thing. If you like this design, please Like, Download, and Support KUMAWAT⁰⁰⁷ PRINTs so we can keep bringing high-quality functional engineering models to the community!
