Custom "Exile Hydranoid" Bakugan - V1

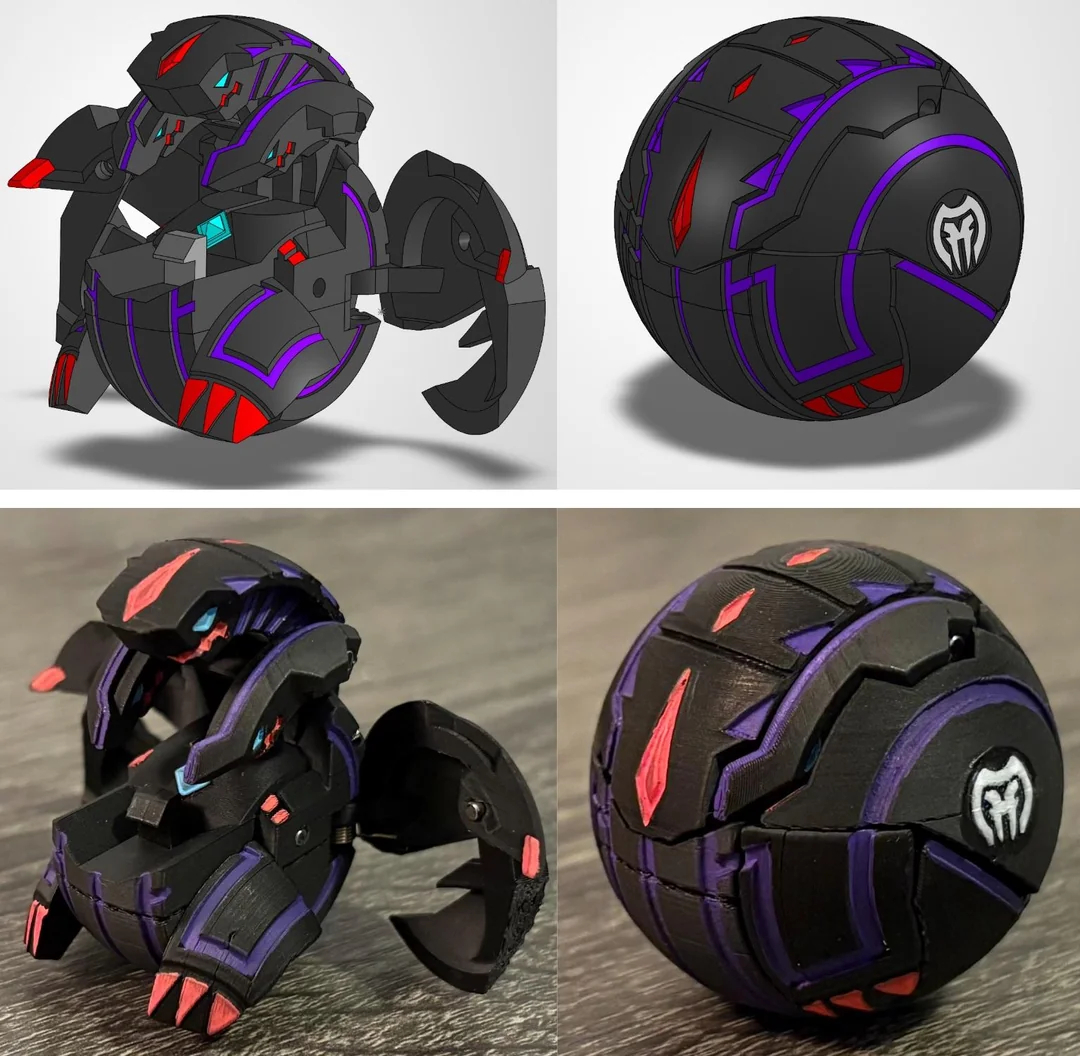

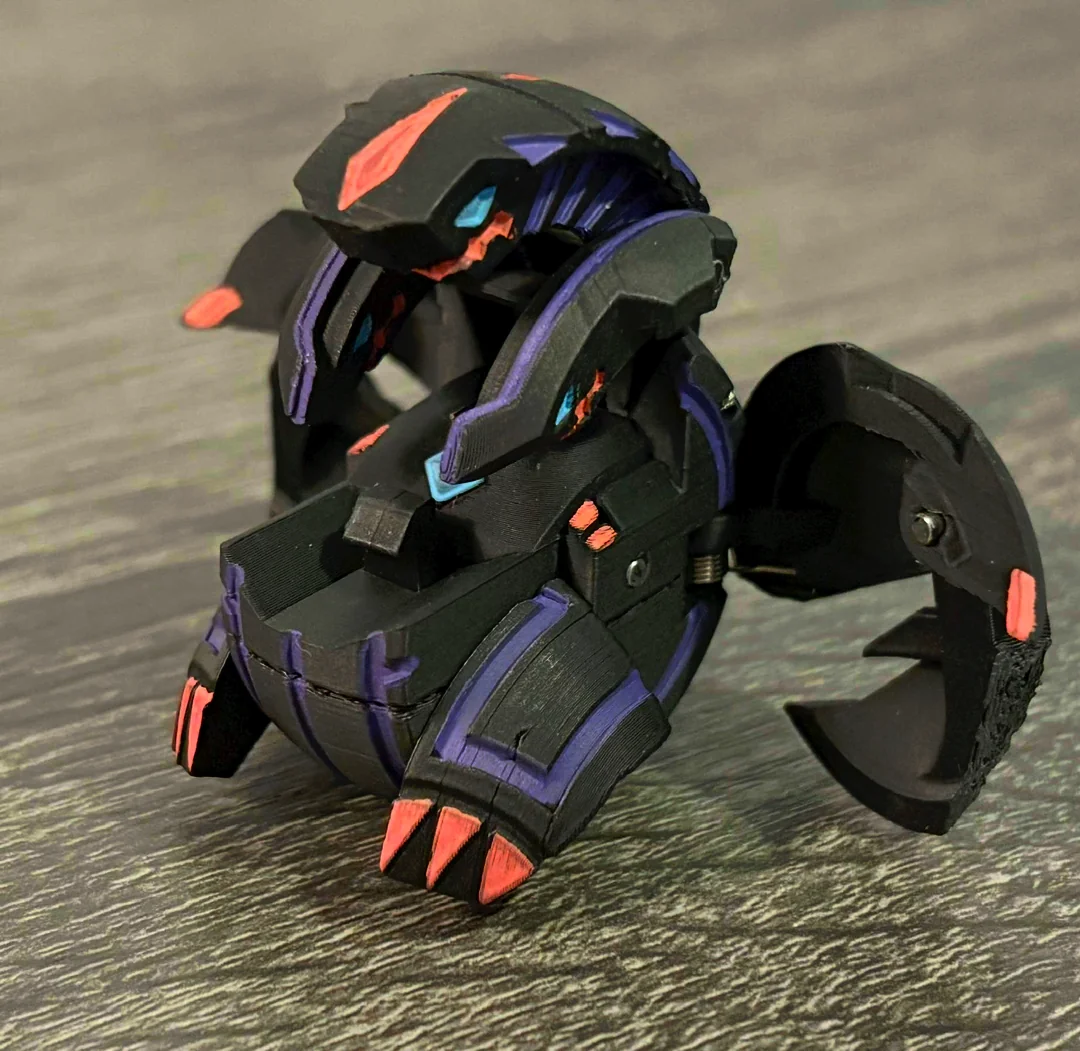

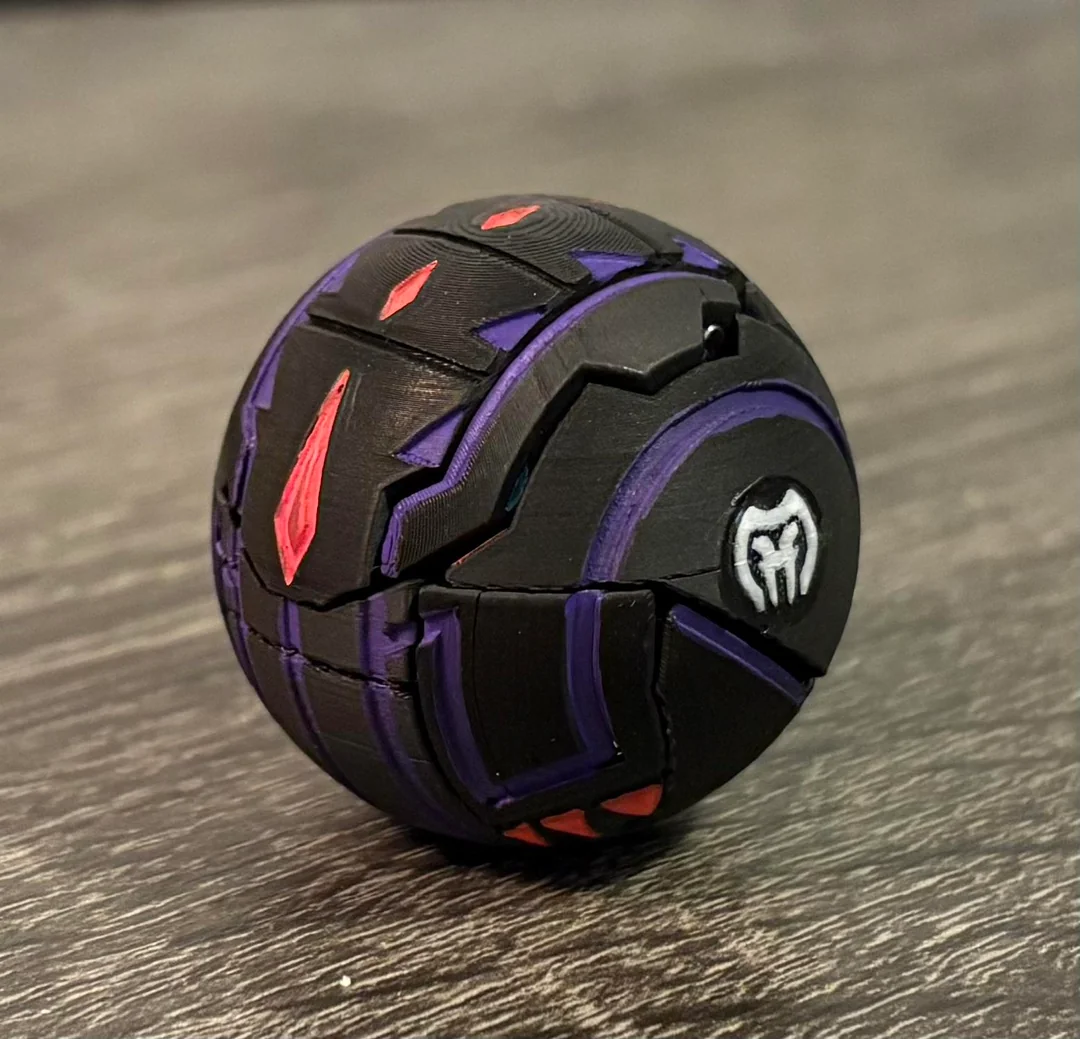

This is a working custom Hydranoid-inspired Bakugan Design. I have included the plate file I used, as well as the individual step files if you want to experiment with the print orientation. This is the first iteration of the design and my first Bakugan, but I will be making a version 2 in the future, which will include horns, remodeling of the heads and exterior design, and possibly more. Tips & Info: - No glue is required, but it may help when connecting the feet to the pin - The side heads, sub-wings, and feet all deploy using gravity. No springs are needed for those parts. - Each pin was cut to length - It will take some bending to get the springs into place - 4 springs are used in total. One for each wing, one for the head, and one for the magnet - Use 2 5x3 round magnets stacked on top of each other or 1 5x6 magnet if you have one - When installing the magnet spring, make sure to not make it too strong. It does not take much spring force to keep the clip in place. The weaker the spring is, the stronger the magnet will be. Materials: The print in the images was made using black Bambu PLA Matte filament.  All springs, magnets, and pins were bought from the Bambu store (https://ca.store.bambulab.com/). I have included the links below. - Black PLA matte filament - https://ca.store.bambulab.com/products/pla-matte?id=43887138504944 - 2mm Pins - https://ca.store.bambulab.com/products/d2-stainless-steel-dowel-pin - Torsion Springs (0.4x4x6 mm 120 Degree (10PCS) - BC002) - https://ca.store.bambulab.com/products/torsion-spring?id=45648858153200 - 5x3mm Round magnets (Stack 2 on top of each other) - https://ca.store.bambulab.com/products/round-magnet?id=46034134696176 I hope you enjoy!
