Midea PortaSplit Drain Tray

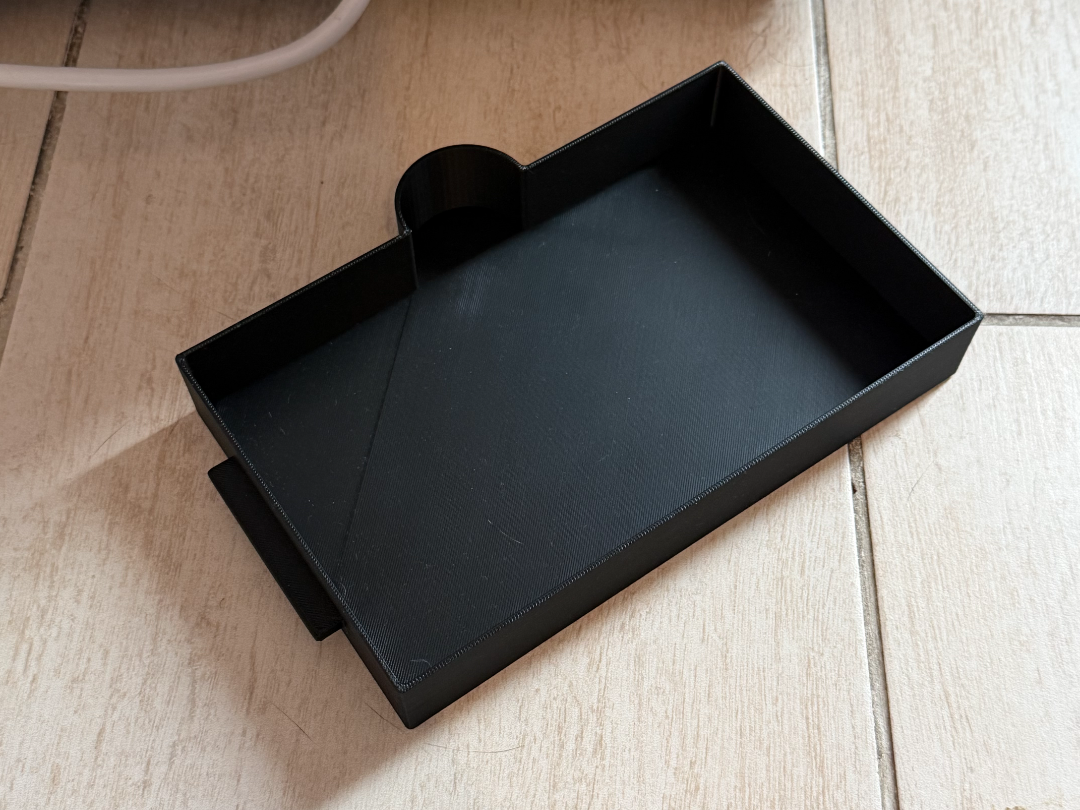

I designed this because I got tired of the awkward process of draining the remaining water from my Midea PortaSplit. The drain outlet sits so close to the floor that most normal containers simply don't fit underneath. I ended up either trying to squeeze in a tray that was too large or using a baking sheet to catch the water. It worked, but it was always a bit of a hassle. So I made this simple, low-profile drain tray specifically for the PortaSplit. The tray is only 35 mm high and has a 50 mm cutout that fits around the drain outlet. Small handles on both sides make it easier to carefully pull the tray out once it's filled. On my PortaSplit I measured roughly 500–600 ml of water when draining it, so the tray was designed around that amount while still leaving some extra room. Available versions P1S / A1: 230 × 140 × 35 mm tray body A1 Mini: 158 × 140 × 35 mm tray body Drain cutout: 50 mm diameter Handles: 10 mm on each side PLA is perfectly fine for this use since the tray only holds the condensate for a short time while draining. I recommend doing a quick water test after printing to make sure your print is watertight before using it under the PortaSplit. This is not an official Midea accessory. The dimensions are based on my own PortaSplit and measurements.
