LM2596 Buck Converter Case | Snap-Fit | Options

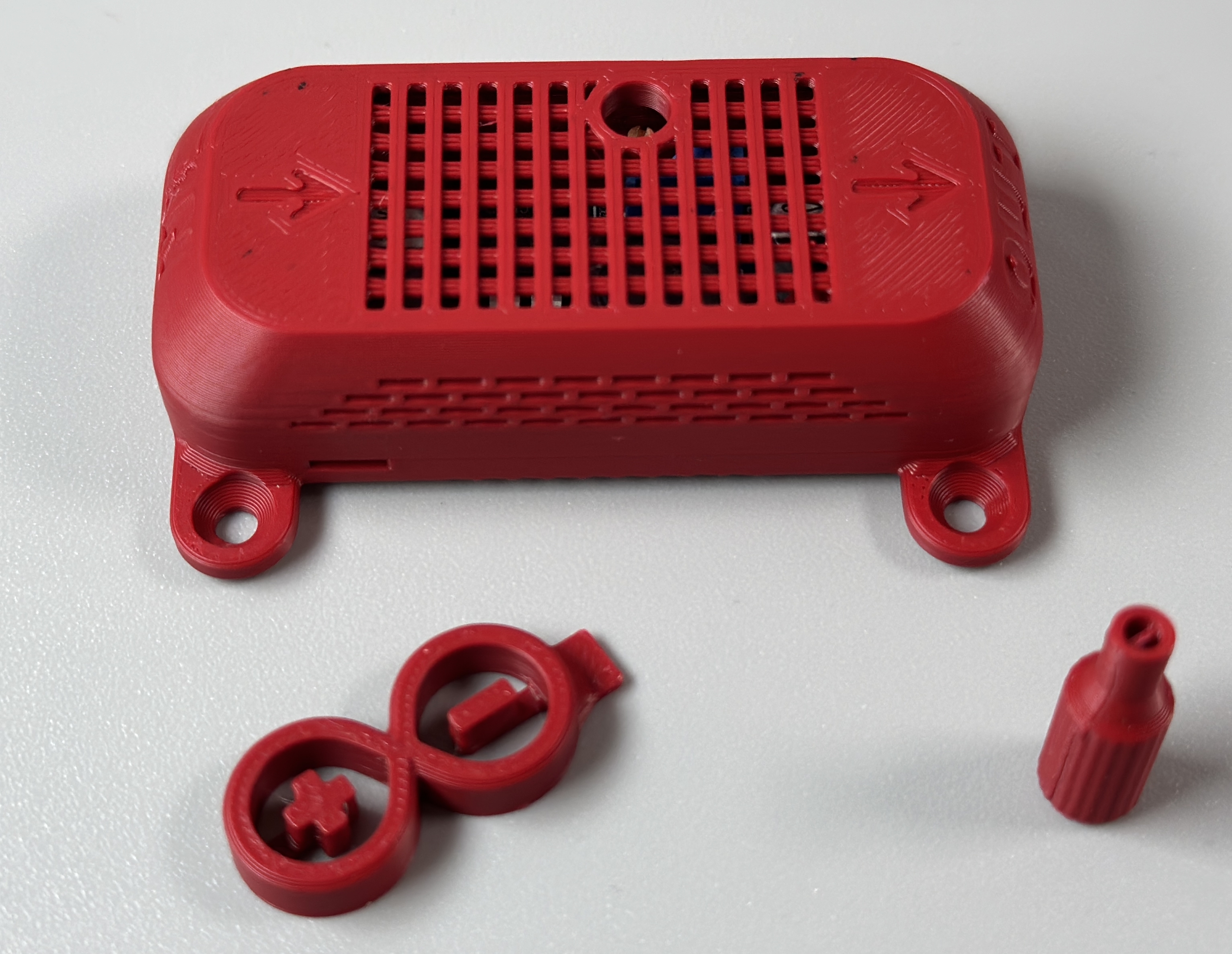

🔧 Features Snap-Fit Case Easy to open and close without screws Potentiometer Access Direct access to the adjustment screw without opening the case. Potentiometer Screwdriver Includes a dedicated adjustment tool. It fits the modules I tested, but please check compatibility with your potentiometer. Ventilation Cooling openings on all sides improve airflow around the module. Case Opener A separate opening tool is included for easier lid removal. Wall-Mount Options - Plain: No mounting holes - Long-Side Mount: Screw holes on the long side - ⌀3mm - End-Side Mount: Screw holes on the short side - ⌀3mm - Inside-Mount holes: Screw holes - ⌀3mm    ⚠️ Important: If you use the internal screws, insulate the underside of the PCB to prevent short circuits. - Skadis Mount - Din Rail Mount (use screw 3x8mm to connect it to the case) Cable Clamp — Up to 5 mm Cables The cable-clamp bridge can be installed in either direction: - One side for thinner wires - One side for thicker cables - Recommend 3x12mm Screws Internal Mounting Holes Optional screw holes inside the case can be used to secure the module. ⚠️ Important: If you use the internal screws, insulate the underside of the PCB to prevent short circuits. Heatsink Clearance Space for a heatsink up to approximately 9 × 9 mm. Compatible to: LM2596,  XL4005, XL6009 Max form factor: 45.8mm x 21.3mm 🖨️ Print Settings Material: PLA is suitable for normal use.  PETG is recommended for higher power loads or increased heat resistance. Layer Height: 0.2 mm Supports: Not required 🔗Links LM2596: https://s.click.aliexpress.com/e/_c3hzuC6T Heat Sink: https://s.click.aliexpress.com/e/_c4sicXrp
