ADJUSTABLE ROUND CORNER CUTTER

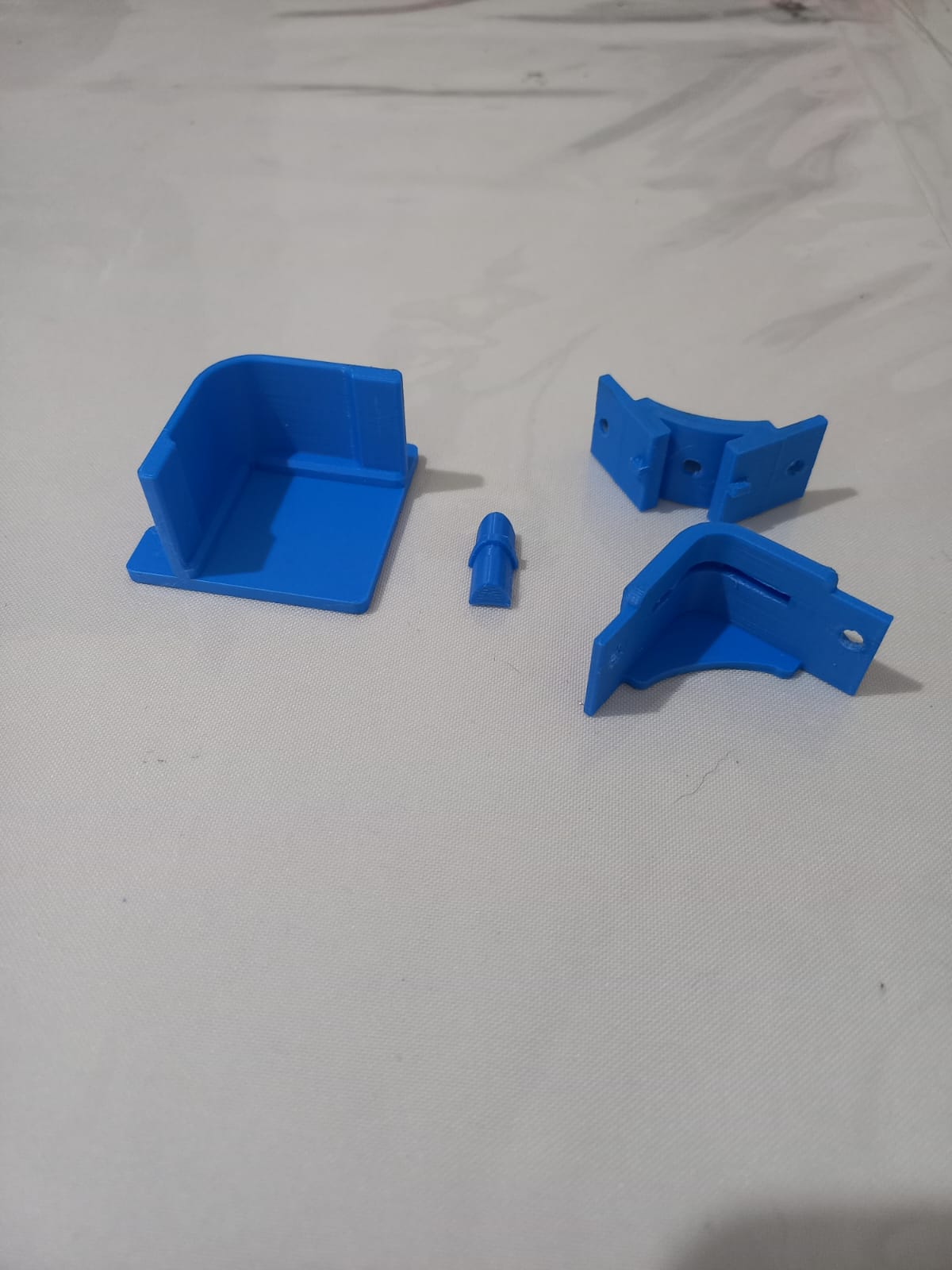

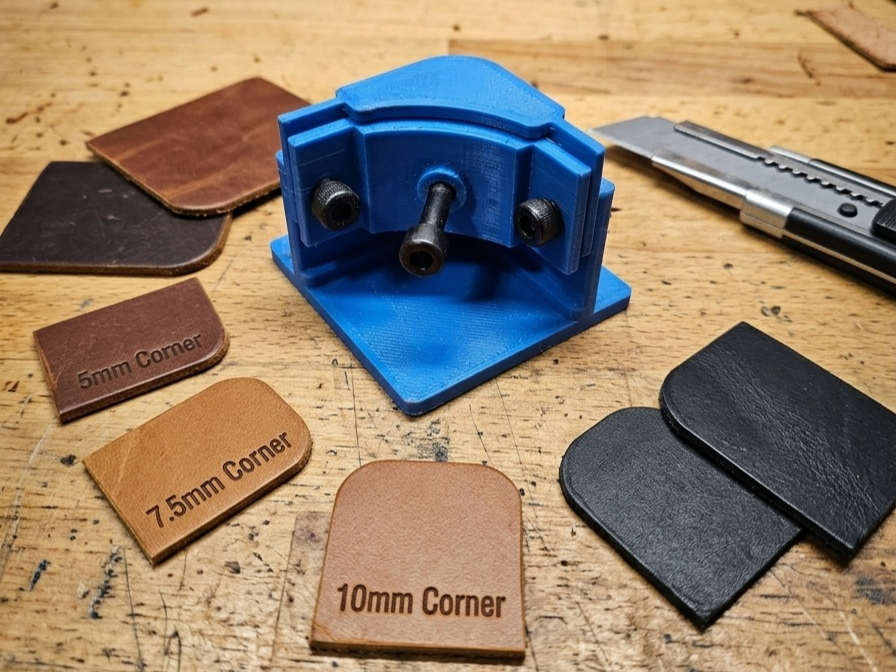

ADJUSTABLE ROUND CORNER CUTTER - 3D PRINTABLE FILES THIS WAS DESIGNED TO SIMPLIFY CUTTING ROUND CORNERS ON LEATHER, CARDBOARD, THIN PLASTIC, FOAM AND ANY SOFT MATERIALS. THE DIAMETER OF THE CUT CAN BE ADJUSTED FROM 5mm UP TO 12mm WITH JUST TJE TURN OF A SCREW. NO NEED OF HAVING SEVERAL PIECES FOR EACH SIZE CORNER. I RECOMMEND RESPECTING MY PRINT SETTINGS SINCE THIS IS A TOOL AND SCREWS NEED STRONG PARTS TO WORK CORRECTLY. EASY TO PUT TOGETHER. BESIDES THE PRINTED PARTS YOU´LL NEED A RAZOR BLADE, 2 M4 X 5mm AND 1 M4 X 12mm OR LONGER. INSTRUCTIONS: ALL PARTS PRINTED AND OTHERS. YOU WILL NEED PLACE THE BLADE BETWEEN THE FRONT PART AND THE BACK PART. REMEMBER THAT BEFORE PLACING THE BLADE YOU NEED TO PUT THE MIDDLE PART AS SEEN IN THE PICTURE. BE CAREFUL IN THIS PARTS SINCE RAZORS ARE VERY SHARP AND ANY BAD MOVE CAN END WITH A CUT. PLACE SIDE SCREWS. THESE HOLD THE RAZOR IN PLACE MAINTAINING FRONT AND BACK TOGETHER. MAKE SURE THE SCREWS ARE FLUSH ON THE OUTSIDE OF THE FRONT PART. THIS IS IMPORTANT. IF YOU PASS THAT POINT THIS PART WILL NOT FIT CORRECTLY ON THE BASE. NOW YOU CAN PUT THE CENTER SCREW AND START ADJUSTING IT ACCORDING TO THE DIAMETER YOU WANT. HERE YOU CAN SEE A WIDE ANGLE THIS IS JUST TO SHOW THE SMALL DIAMETER OBTAINED BY SCREWING THE CENTER SCREW. IF YOU HAVE ANY DOUBTS, PLEASE LEAVE A PRIVATE MESSAGE OR A COMMENT.  ENJOY!
