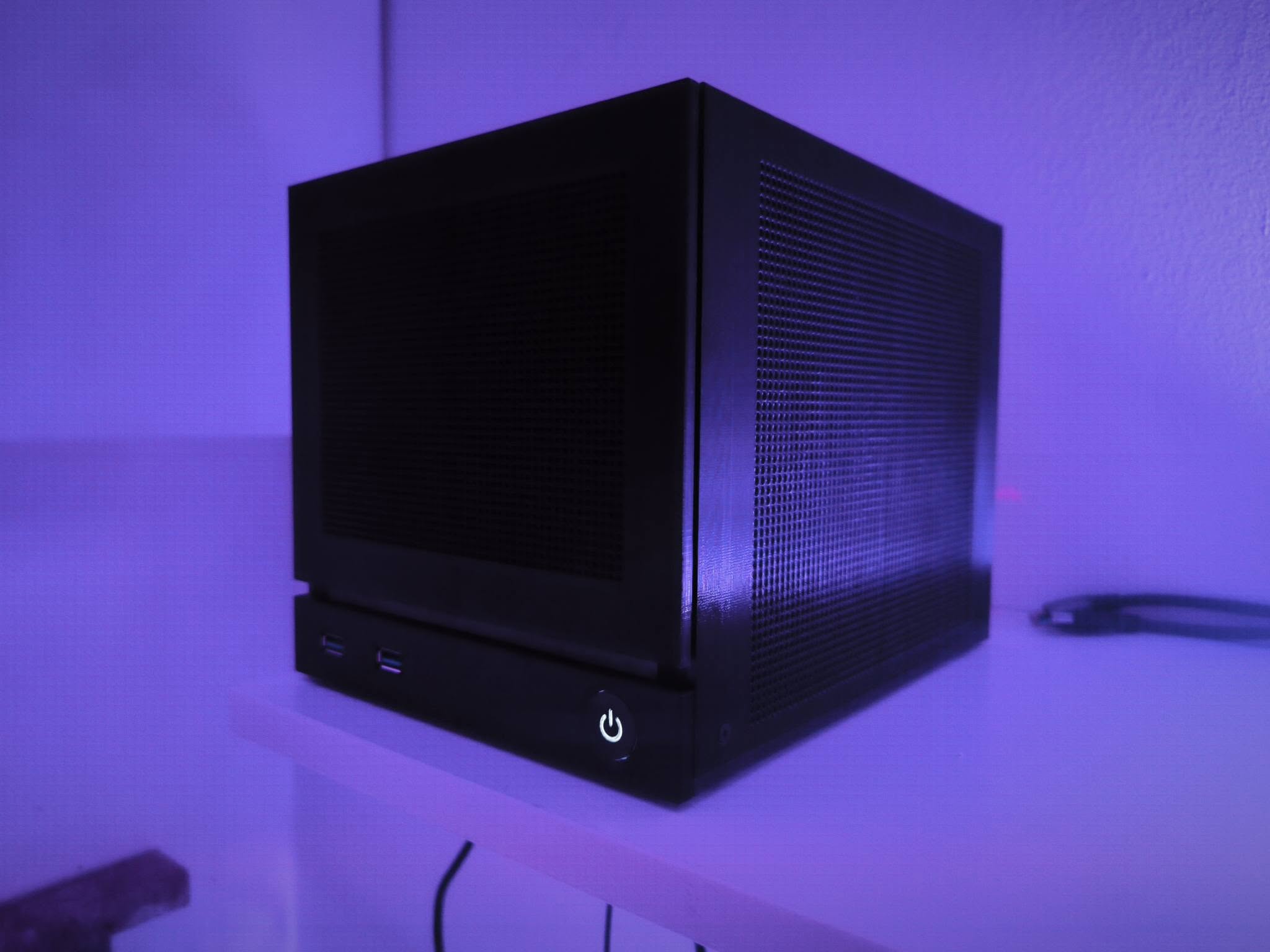

STEAMn't Machine - Steam Machine Inspired Case

This is not the Steam Machine, infact.. THIS IS THE STEAMN'T MACHINE! 🎮 A modern Mini-ITX case inspired by the original Steam Machine design A compact 8.7 L Mini-ITX enclosure inspired by the original Steam Machine, designed to combine a console-like appearance with the flexibility of a modern gaming PC. Designed to be easy to print, assemble and customize, it supports multiple power supply form factors (SFX, Flex ATX and HDPLEX GaN) and coolers (up to 115mm), making it adaptable to a wide range of hardware configurations while maintaining a compact footprint. The enclosure is split into printable sections that fit most standard FDM printers. ⭐ Why You'll Love It ✅ Compact 8.7 L console-style design ✅ Supports SFX, Flex ATX and HDPLEX GaN power supplies ✅ Compatible with GPUs up to 225 mm ✅ Fully optimized for FDM 3D printing ✅ Modular construction for easier printing and maintenance ✅ Uses only standard M3 hardware and heat-set inserts ✅ Clean exterior with hidden fasteners 📐 Specifications Dimensions SpecificationValueExternal Dimensions241 × 190 × 190 mm (L × W × H)Volume8.70 LPrinted Weight~1 kgMotherboard Support Mini-ITX GPU Support SpecificationValueMaximum Length225 mmMaximum Thickness40 mm (Dual-Slot)Power Supply Support Supported PSU formats: SFX Flex ATX HDPLEX GaN 250W HDPLEX GaN 500W Maximum CPU Cooler Height Power SupplyCooler ClearanceSFX47 mmFlex ATX68 mmHDPLEX GaN 250W115 mmHDPLEX GaN 500W115 mm🌬 Top Fan Compatibility Top fan support depends on: Installed power supply CPU cooler design Fan size Cooler orientation Typical Compatibility 92 mm low-profile coolers ✔ 2 × 80 mm top fans ✔ 1 × 120 mm top fan 120 mm low-profile coolers Compatibility varies depending on the cooler height. Coolers up to approximately 67 mm generally still allow: ✔ 2 × 80 mm top fans Compact dual-tower coolers When used within the supported height limits, they generally allow only: ✔ 15 mm slim top fans Note Please refer to the maximum CPU cooler heights listed above. Actual compatibility may vary depending on the specific cooler model and mounting orientation. 🖨 Printing Information Designed for FDM 3D printers Minimum recommended build volume: 250 × 250 mm Recommended color: Black (for the classic Steam Machine look) Total filament required: Approximately 1 kg (depending on slicer settings) PETG is strongly recommended. PLA can be used on some of the panels (like front panel, front mesh panel and I/O front panel), but PETG provides better heat resistance for compact PC enclosures. ⚙ Recommended Print Settings These settings were used during development and provide a good balance between print quality, strength and printing time. SettingValueLayer Height0.20 mmFirst Layer0.20 mmWall Loops3–4Infill8–10%Recommended MaterialPETG / PETG-CFSupports may be required for some components depending on your slicer settings. 🔩 Hardware Required 24 × M3 heat-set inserts (Ø4 × 3 mm) Optional The motherboard mounting points can also use M3 Ø4.2 × 5 mm inserts for additional thread engagement and improved durability. 18 × Ø6 × 2 mm neodymium magnets 16 × M3 × 8 mm countersunk screws 10 × M3 × 8 mm head screws 4 (Flex) or 6 (HDplex) x M3 hex nuts   🔌 Electronics PCIe Riser 1 × PCIe x16 riser cable Maximum recommended length: 100 mm (10 cm) Longer riser cables may complicate cable routing and installation. Power Button 1 × 16 mm metal momentary push button Front USB 1 × USB 3.0 20-pin internal header → Dual USB Type-A front panel cable
