Miter Gauge with Custom T-Track Runner

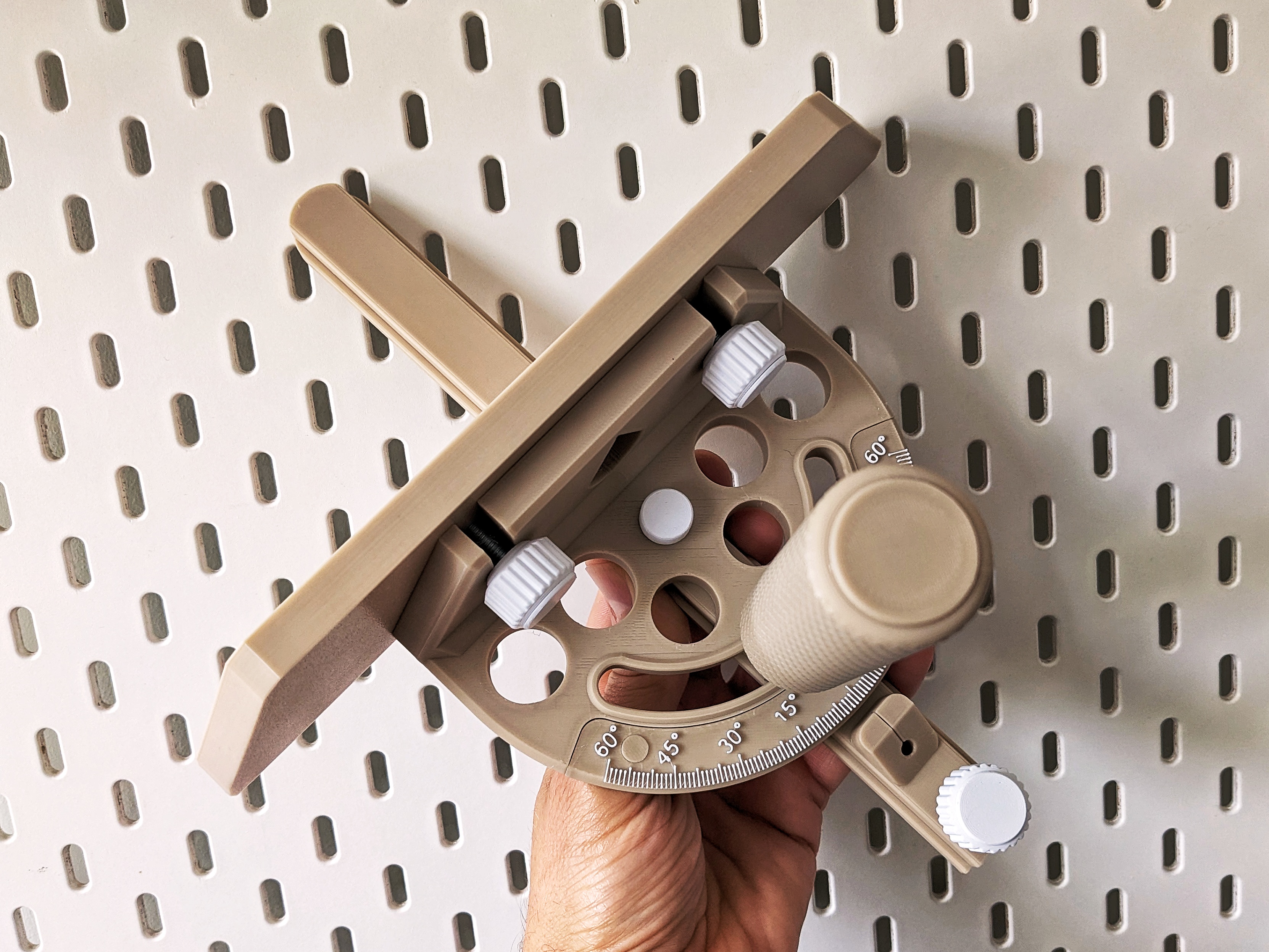

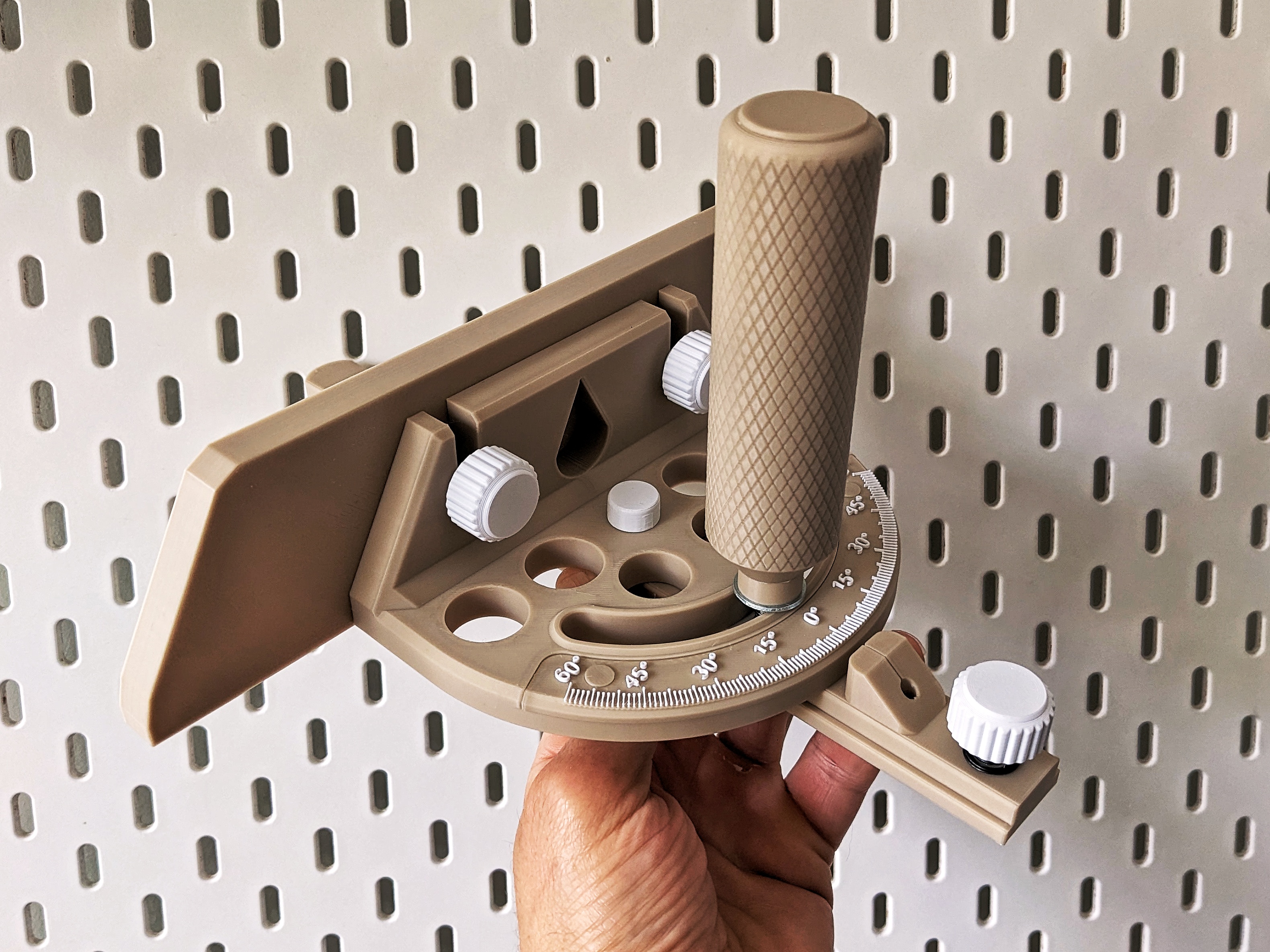

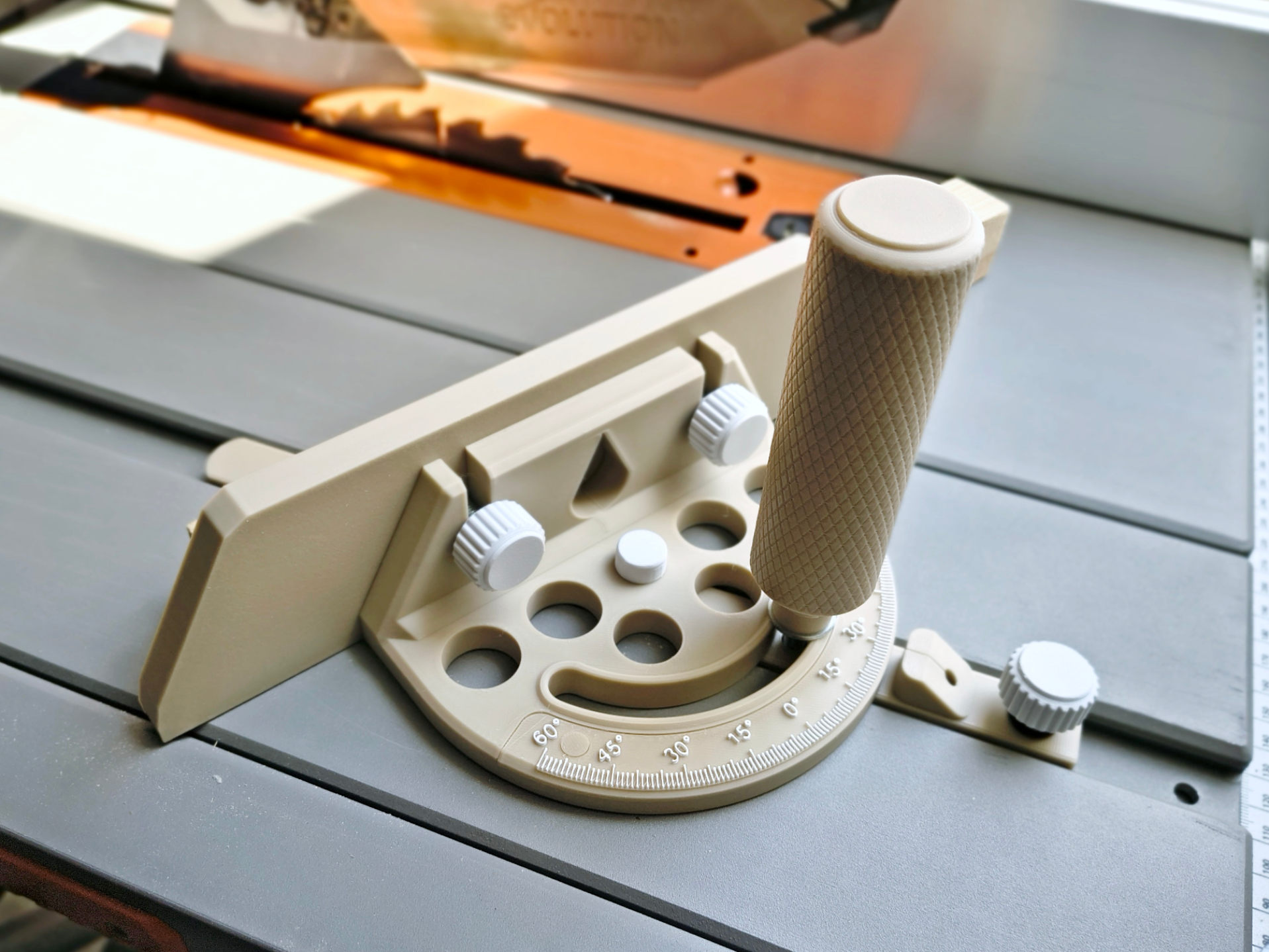

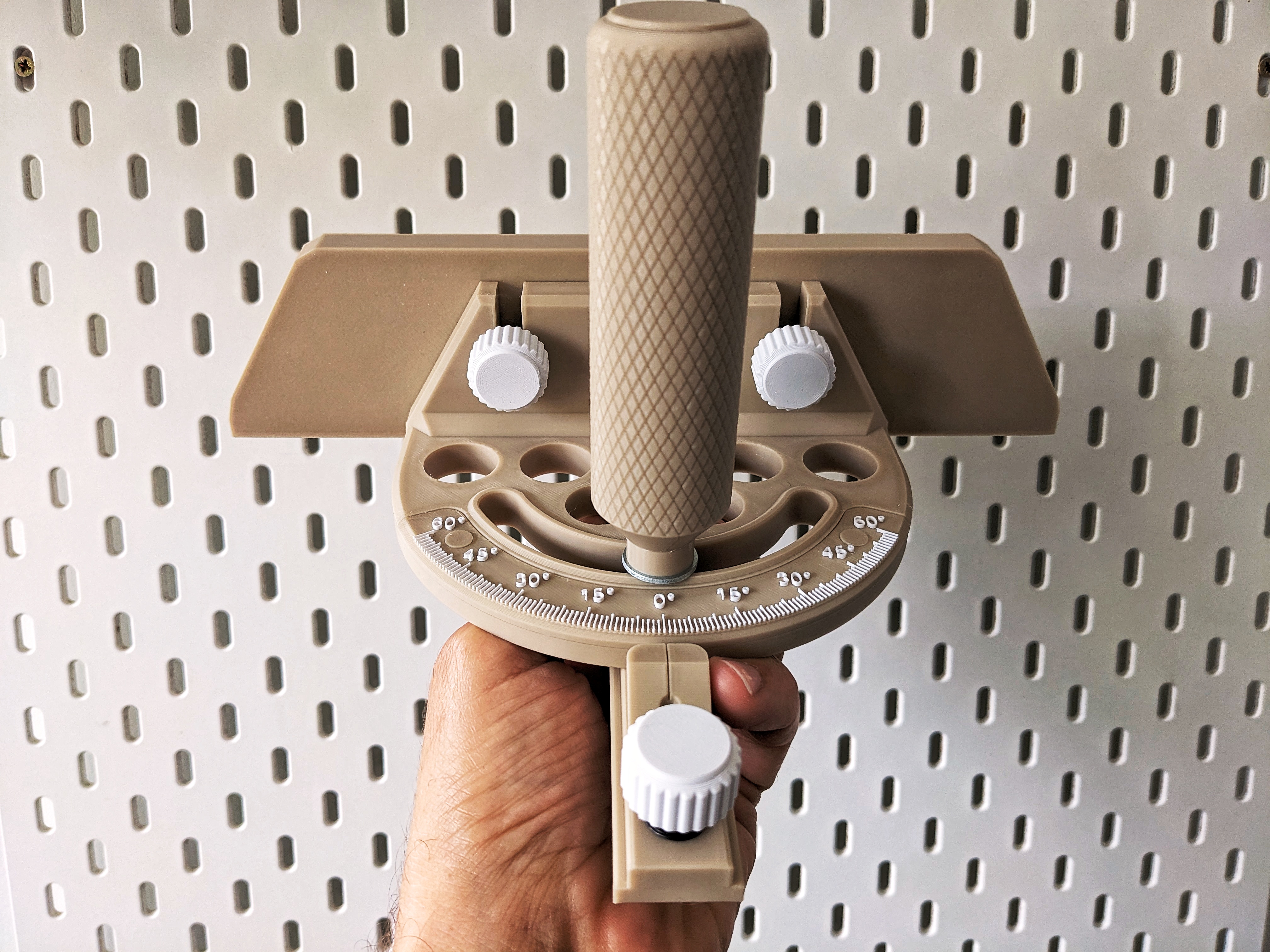

Measure your T-track, customize the runner, print and assemble a full miter gauge that actually fits your saw. No more wobbly stock gauges with sloppy side play.   This is a complete, fully 3D-printed miter gauge system with a customizable T-track runner, adjustable fence, two-color angle scale (0 to 60 degrees both sides), ergonomic locking knob and a runner lock for repeatable positioning. The runner uses MakerWorld's built-in customizer, so you can dial in the exact cross-section of your T-track (check the description below) and get a snug, zero-play fit on any table saw, band saw or router table.   Designed and tested on an Evolution R255TBL+ table saw. Works with any machine that has a T-slot miter channel, as long as you measure and customize the runner to match.     Key features Customizable T-track runner fits any non-standard slot profile 120-degree range (60 degrees each side of zero) Two-color scale, printed separately (no AMS required) Adjustable fence (19.4 cm top, 25 cm bottom), slides along two slots for positioning Runner lock with optional spring for progressive clamping feel Reinforced pivot boss (6 wall loops) for long-term durability under side load Lightening holes reduce weight without sacrificing stiffness All hardware is standard M6, easy to source anywhere   Hardware required 1x M6 x 25mm hex head bolt (pivot) 1x M6 x 45mm bolt (main locking knob) 1x M6 x 25mm bolt (runner lock) 2x M6 x 35mm bolt (fence) 5x M6 nut 1x M6 washer, minimum 10mm outer diameter Optional: spring, approximately 25mm long, any type that fits over M6 shaft (recommended for runner lock) CA glue (optional, for extra security when attaching the scale)   How to get your parts This listing has two buttons: "Open in Bambu Studio" and "Customize."   "Open in Bambu Studio" gives you the full print profile with all 6 plates (base, scale, knob, small parts, fence, example runner). All print settings are pre-configured.   "Customize" opens the parametric runner generator. Enter your T-track measurements (top_width, bottom_width, top_height, bottom_height), generate an STL, then either add it as a new plate in Bambu Studio or replace the example runner plate (plate 06) with your custom runner.     Important: measure your T-track before printing the runner!   The example runner included in the print profiles is sized for the Evolution R255TBL+ table saw with the following default values:   bottom_width = 24.30 mm bottom_height = 4.30 mm top_height = 6.00 mm top_width = 19.40 mm     Your saw almost certainly has different slot dimensions. Use the Customize button to adjust these four parameters to match your specific T-track. A caliper measurement accurate to 0.1mm will give you the best fit.     Printed parts (6 plates) 01 - Scale (two-color, no AMS needed, print in contrasting colors)  02 - Base (main mitre gauge body)  03 - Knob (large locking knob + cap)  04 - Small knobs + pivot cap + scale bolts (all small parts on one plate)  05 - Fence  06 - Example runner (customize before printing)     Assembly   1) Measure your T-track slot dimensions and customize the runner model (top_width, bottom_width, top_height, bottom_height). Use the included example runner as a reference for print settings.2) Insert 3x M6 nuts into the runner slots (from the bottom).3) Align the scale with the cutout on the base, press the locating tabs in. The scale should hold on its own. Optionally apply CA glue for extra security.  4) Place the base onto the runner. Insert the pivot bolt (M6 x 25mm hex head) through the boss into the runner nut. The hole is intentionally tight to eliminate play, you may need to screw the bolt in rather than push it through. Press the cap onto the bolt head.5) Insert the M6 x 45mm bolt from the top of the large knob (push through the hex channel, use a screwdriver to press it down). Place the M6 washer (min 10mm diameter) onto the bolt shaft from the bottom. Pass through the arc slot and tighten into the runner nut with moderate force. Press the cap onto the top of the knob.6) Press 2x M6 x 35mm bolts into the fence holes (press-fit).7) Insert an M6 nut into each of the two small fence knobs, close with caps.  8) Slide the fence bolts through the slots in the base, thread the small knobs onto the bolts.9) Insert the M6 x 25mm bolt into the runner lock knob, place the spring (recommended) onto the bolt shaft, screw the assembly into the nut at the end of the runner. Press the cap onto the knob.      Using it Loosen the large knob, set your angle using the scale markings, tighten the knob. The runner lock at the end of the bar lets you fix the gauge position along the T-track. For repeatable cuts, tighten the runner lock once you find your position, then only adjust the angle knob between cuts.     Print hints Material: PLA works well. PETG is fine if you want extra durability. The base prints flat.  The large knob prints vertically with a brim. The scale is a separate print in a contrasting color (white scale on dark base or vice versa). No AMS needed, just filament swap in the middle. The example runner profile is customized for the Evolution R255TBL+. You must customize it for your own saw before printing.           If you print it, please leave a rating, it helps a lot. Check out my other workshop models in the Ikea Skadis collection.                 Boost MeHey! All my models are designed in the stolen hours between work, sleep, and pretending I'll go to bed early. Everything here is free - if something saved you a trip to the hardware store or just made your day a little easier, a boost is a great way to say thanks. Got questions, feedback, or a wild idea? Drop me a DM - I read everything, eventually. Thanks for stopping by!!
