LumaForge – Customizable LED Lamp Generator

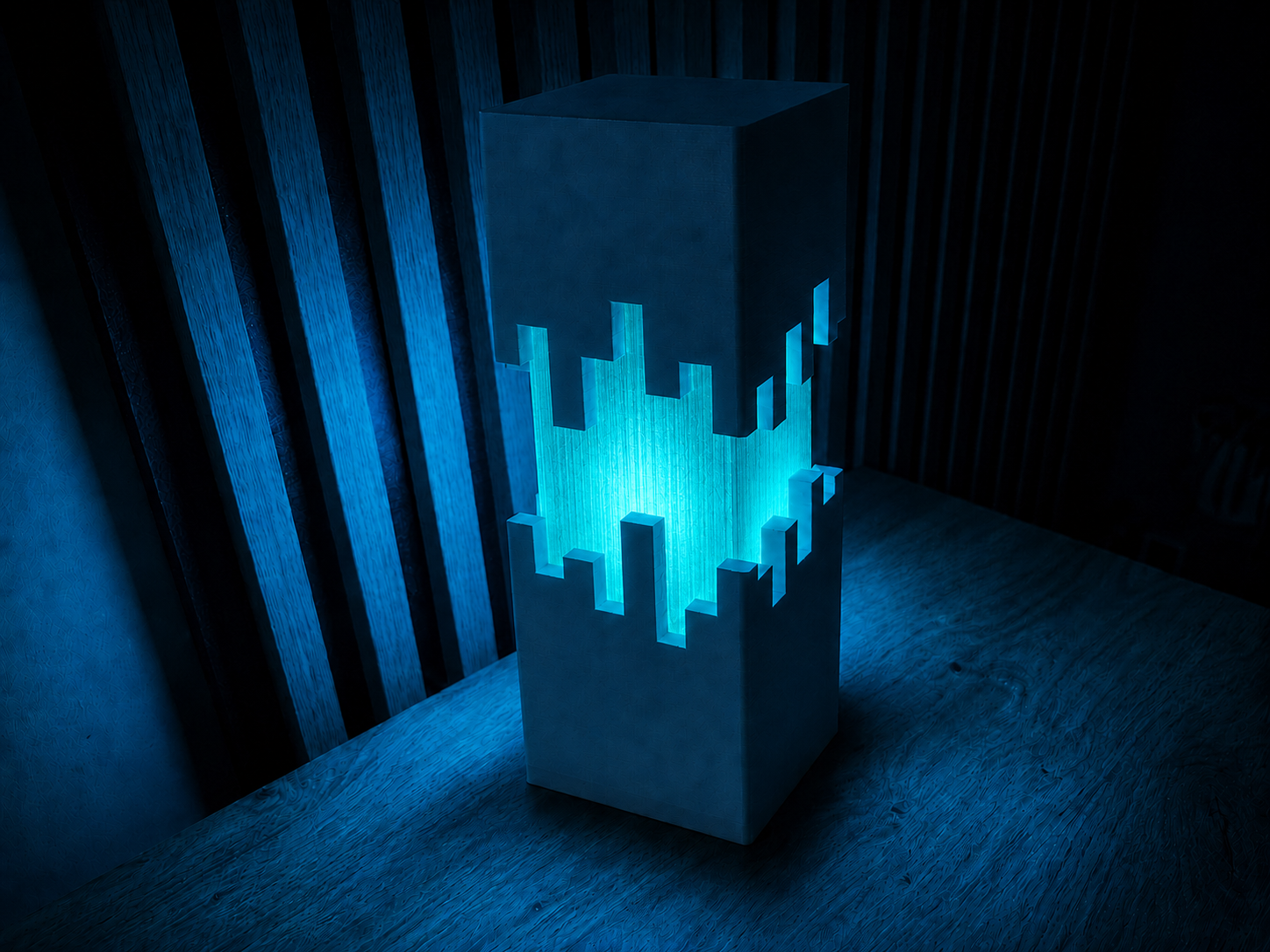

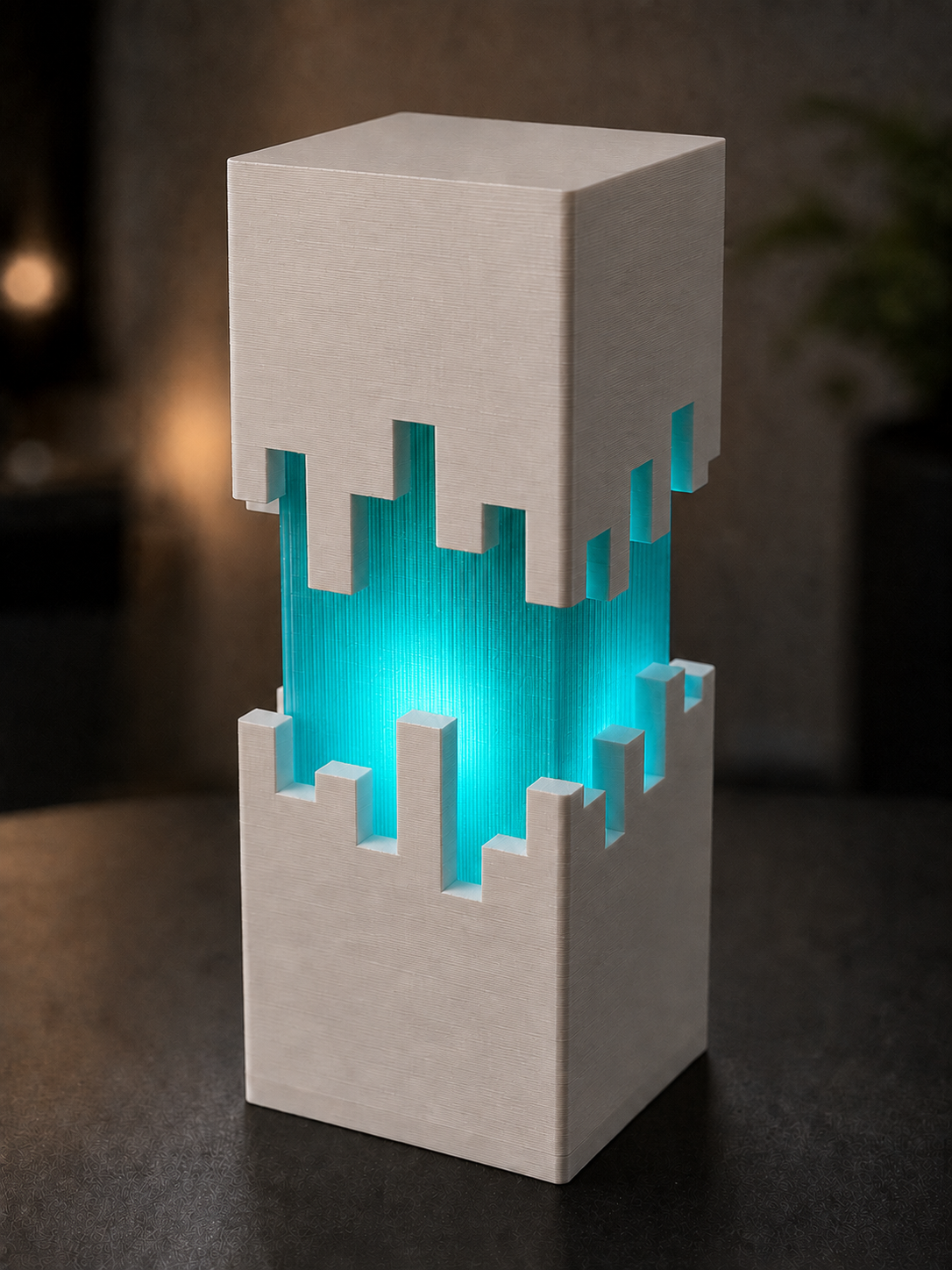

LumaForge – Customizable LED Lamp Generator Version: 1.1.0   LumaForge is a MakerWorld customizer for creating complete layered LED lamps for desks, bedside tables, shelves, ambient room lighting, or pendant installations. Choose a style, dimensions, and light source, then generate matching printable parts with a glowing diffuser between decorative upper and lower shells.   Every lamp includes four core parts: lower decorative base removable light-source insert translucent diffuser upper decorative cap Optional configurations can also add a captured reflector and a separate press-fit light window in the upper cap. Boost MeLumaForge required extensive fit, lighting, cable-routing, and print-orientation testing. If the generator helps you create a lamp, a Boost supports further testing and development of practical parametric generators.🎛️ What You Can Customize 15 ready-made visual presets or fully manual settings rectangular, round, hexagonal, and octagonal bodies table or pendant installation body width, depth, diameter, height, shell thickness, and illuminated gap connected pixel, skyline, equalizer, peak, and stepped shell profiles smooth or ribbed diffuser texture 14 diffuser pattern families, including stars, waves, city skylines, hexagons, neon cracks, constellations, circuits, and Aurora ribbons bright recessed or dark raised diffuser effects optional captured reflector optional sharp, rounded, or oval top light window cable routing, ventilation, clearances, screw mounting, and M3 heat-set inserts separate colors for the housing, diffuser, insert, reflector, and upper window assembled, exploded, print-layout, and individual-part output Generated 3MF files retain the assigned part colors, making it easier to prepare multi-color or multi-material projects. The diffuser should still be printed from a suitable transparent, translucent, natural, or white filament. 💡 Supported Light Sources LumaForge includes removable inserts for: Bambu Lab LED Lamp Kit 001 (MH001) Bambu Lab RGBW Puck Light (KC007) commercial E14 lampholders commercial E27 lampholders custom round LED modules Universal interchangeable fit creates one shared housing interface for compatible inserts. Export the housing once, then change only the light source and export the required inserts.   Compact source-specific fit produces a smaller lamp intended for one selected light source.   For E14 and E27, measure the real holder neck diameter, body diameter, and height before printing. E14/E27 describe the bulb thread, not the outside dimensions of the holder. Example E27 Lampholders E27 lampholder - Amazon Poland (B09WTV8LS3) Meister E27 lampholder with switch - Amazon Poland Zarnicy E27 pendant light socket - Amazon US E27 lampholder - Amazon Germany (B09Q3L4Q8K) Example E14 Lampholders E14 lampholder - Amazon Germany (B0D4Z15PKN) E14 lampholder - Amazon Poland (B06W54NT7D) These links are dimensional references and examples, not a guarantee that every product revision has identical dimensions. Measure the actual holder before generating the insert. 🎨 Presets and Light Patterns The 15 presets cover bright architectural lamps, dark neon designs, round columns, polygonal beacons, skyline patterns, stars, circuits, constellations, and flowing Aurora-style light bands.   Preset groups can be overridden independently. You can keep a preset's colors while changing its body, replace only the diffuser pattern, disable its upper window, or manually adjust the lamp dimensions.   Patterns are generated within one continuous illuminated band, so the diffuser can be rotated to present a different section without changing its fit. Recessed effects preserve a configurable minimum wall thickness to avoid cutting through the diffuser. 🚀 Quick Start Choose a style preset. Select the light source. Keep Universal interchangeable fit or choose the compact interface. Select table or pendant installation. Check the assembled or exploded preview. Select All printable parts for the final export. Test the insert and diffuser fit before printing a full-height lamp. 🖨️ Print Notes The default diffuser wall is 2.8 mm. For illuminated patterns, use enough wall loops to fill the diffuser wall and disable sparse infill for that object. Six or seven walls with Arachne are a practical starting point. Print the diffuser upright. The generated lower base, insert, upper cap, reflector, and window insert use support-friendly orientations in Print layout. Use a small positive clearance if your printer produces overly tight press fits. Print a short fit test before committing to a tall lamp or expensive translucent filament. The MakerWorld preview may not show translucent filament exactly as it will look when printed and illuminated. 🧩 Assembly Install the selected light source in its removable insert. Fasten the insert to the lower body using suitable screws or configured heat-set inserts. Place the diffuser on its lower support seat. Add the optional reflector or upper-window insert. Fit the upper cap over the diffuser. Removing the insert screws releases the complete light-source assembly for servicing. ⚠️ Electrical Safety Use only low-temperature LED light sources.   For E14 or E27 configurations, use a certified commercial lampholder, insulated wiring, proper strain relief, and an LED bulb. Printed plastic must not replace electrical contacts, insulation, or certified mounting hardware. Pendant lamps require a certified cord grip so the electrical conductors do not carry the lamp's weight. Follow the electrical and fire-safety rules applicable in your country.   Visible red 3D warnings indicate unsafe or conflicting settings. Disable them in Section 13 only after verifying the intended configuration. 🛠️ More Generators VentForge - Parametric Vents & Covers: https://makerworld.com/en/models/2955666-ventforge-parametric-vents-covers GardenForge - Plant Stake Label Generator: https://makerworld.com/en/models/2875562-gardenforge-plant-stake-label-generator WhistleForge - Whistle Keychain Generator: https://makerworld.com/en/models/2854048-whistleforge-whistle-keychain-generator KeyForge - Multi-Keychain Generator: https://makerworld.com/en/models/2828084-keyforge-multi-keychain-generator-svg-support 📋 Changelog 1.1.0 - 2026-07-29 Reorganized the customizer into a clearer step-by-step workflow. Moved output and export controls near the beginning of the configuration. Added preset override switches directly to the sections they affect. Separated shell-style and diffuser-pattern overrides. Improved automatic body sizing around complete round light sources and the diffuser support seat. Added clear warnings for preview-only assembled and exploded outputs. Updated the English, Polish, and German customizer variants. 1.0.0 - 2026-07-28 Released the initial layered LED table and pendant lamp generator. Added 15 presets and four body shapes. Added removable inserts for MH001, KC007, E14, E27, and custom round LED modules. Added compact and universal interchangeable light-insert systems. Added support-friendly shortened diffusers with 14 pattern families and two light effects. Added optional reflectors and press-fit upper light windows. Added direct-screw and M3 heat-set-insert mounting. Added assembled, exploded, print-layout, and individual-part outputs. Added separate preview and 3MF part colors. Added visible 3D configuration warnings. Added English, Polish, and German customizer variants.
