USB-C Battery Charge/Discharge Board Holder

USB-C Battery Charge/Discharge Board Holder - 1

Peso

2g

Tiempo

17m

Precio

Cotiza este producto por WhatsApp

Contáctanos y te damos el precio según color y acabado

Pedir por WhatsApp

Las dimensiones dependen del diseño. Confirmamos las medidas exactas por WhatsApp.

Ver en MakerWorld

Descripción

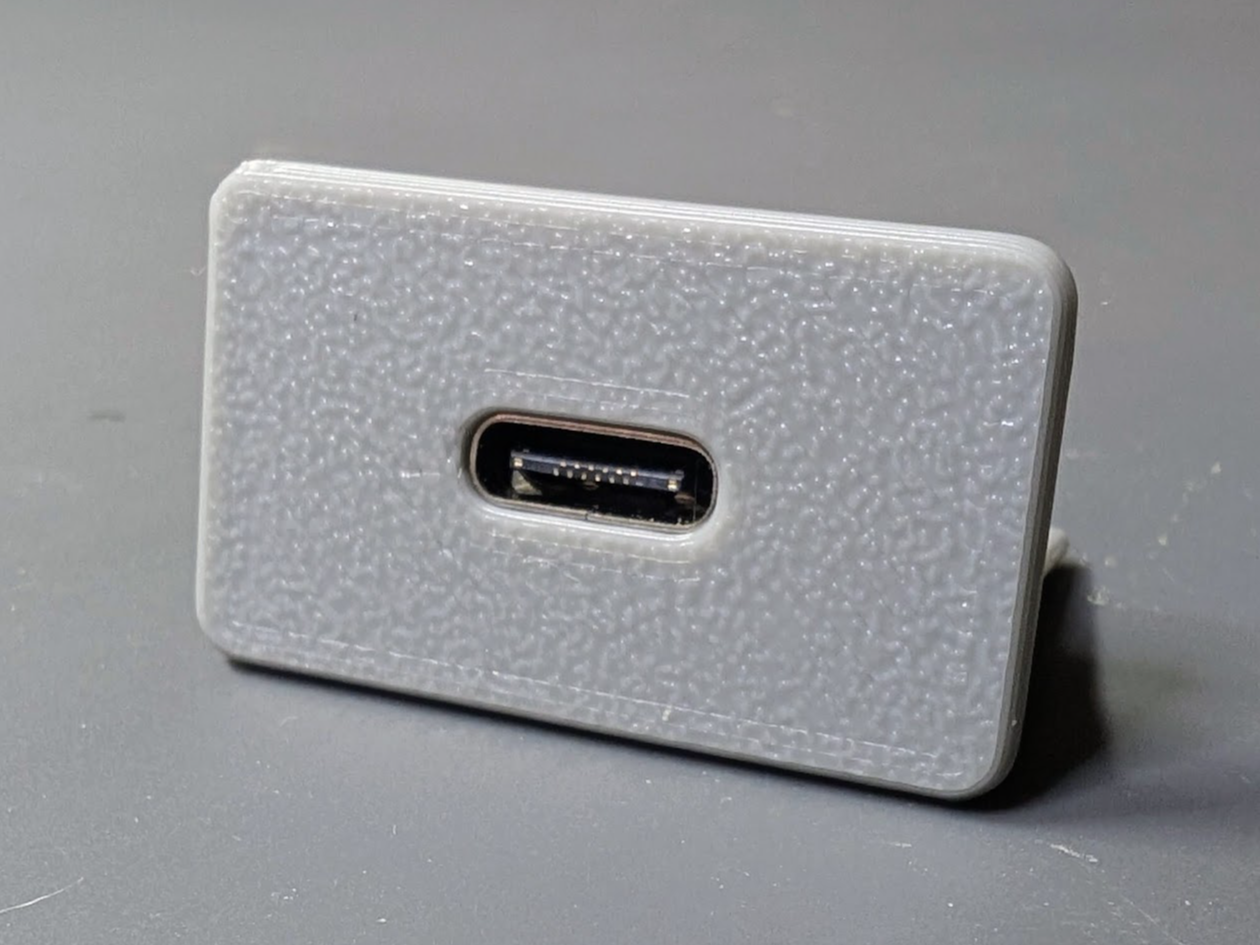

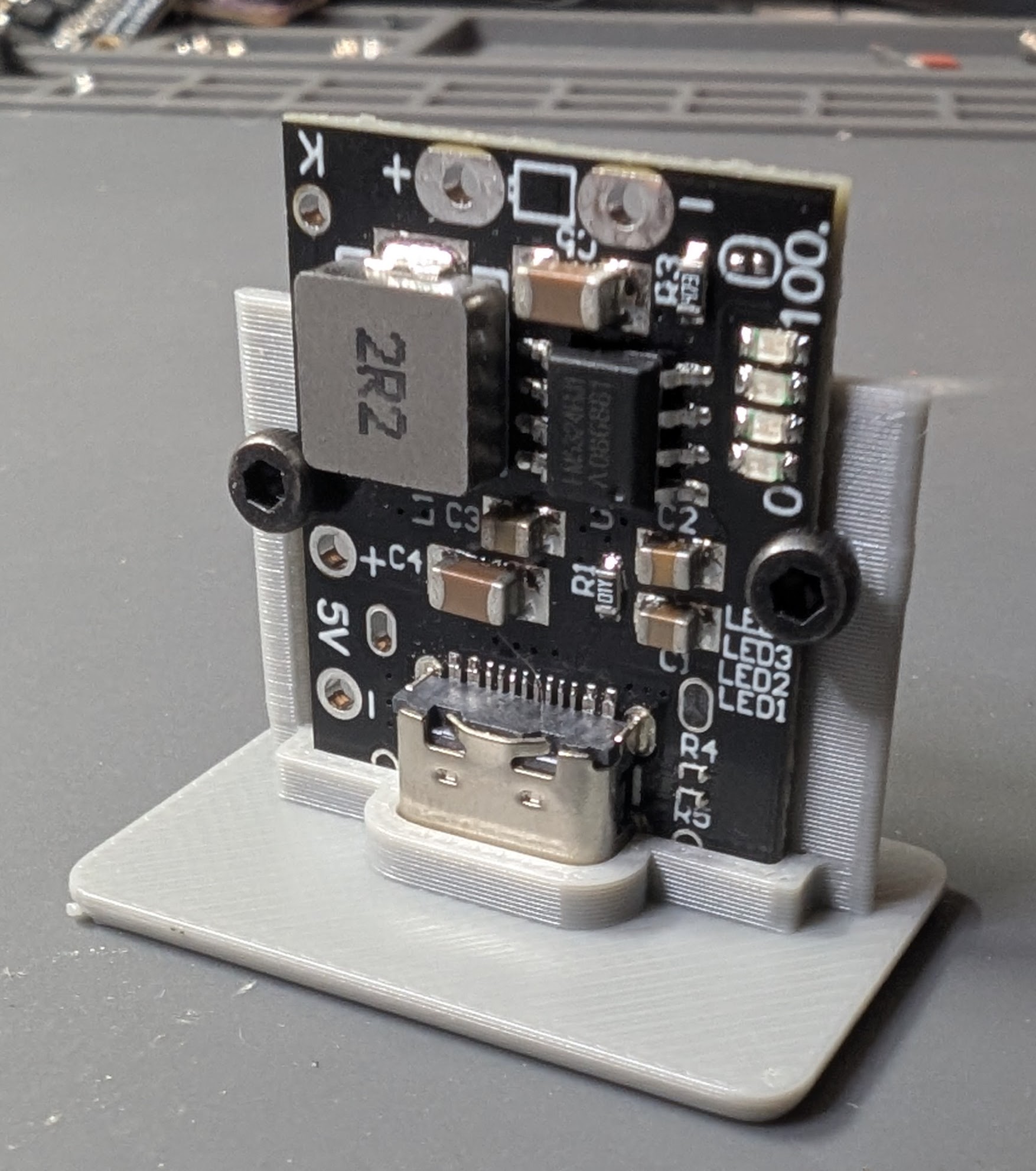

This is a panel-mount holder for the common type-c usb 5v 2a boost/charging modules that are commonly found on AliExpress and Amazon. Here is an (affiliate) link to the pictured module. You can use glue and/or 2x M2 bolts, but please make sure they have really small heads! There are cutouts to be able to access all of the solder points.    If anyone needs the measurements, 9.2mm X  3.4mm rectangle with 1.4mm radius corners. 0.5mm radius fillet around the opening. 0.4 nozzle, generic filament, printed face down.   NOTE: these charging circuits turn off when using < ~50ma, so that's something to be aware of before using it for microcontroller projects. This is the same charger i use in my tape mp3 player project.

Tags

usb cBattery

Diseñador

jrowny

Me gusta
16
Descargas
4
Impresiones
0
