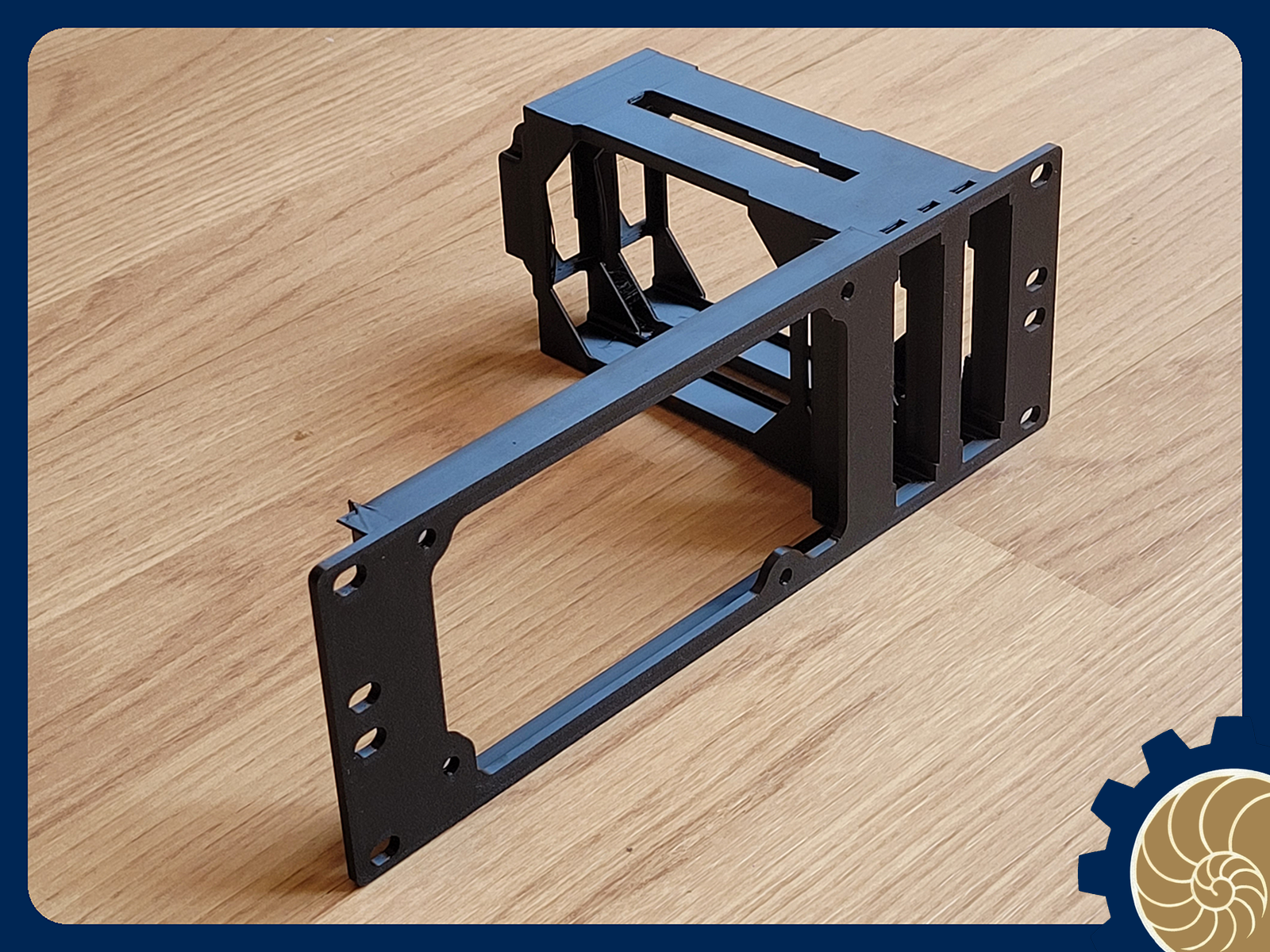

10 inch Rack 2U: ATX PSU + 2x 2.5" HDD

Design: 10" rack, 2U element for ATX PSU & 2x 2.5 HDDATX opening: 150mm x 86mm with 0.4mm additional tolerances All 4 variations available, choose the one you want HOT SWAP is possible. I really wanted that feature and couldn't find it anywhere on printable/makerworld maximum airflow Following feedback the mounting of the SATA connector as been redesigned. I also added 2 Keystones on the side following a comment about it. Print: No support ! Print face down Print profil optimised Other Material: I use those dell-copy caddies from Aliexpress: keywords: “NEW 08FKXC 2.5'' SAS SATA Server Tray Caddy for Dell PowerEdge R730 R630 T640 T630 HARD DRIVE Bracket 8FKXC” "2 PCS NEW 2Pcs/Lot 08FKXC 2.5'' SAS SATA Server Tray Caddy for Dell PowerEdge R730 R630 T640 T630 HDD Bracket Drawer 8FKXC G176J" 2pack tray sells for about 9eur: here in Aliexpress or here in Aliexpress too  For the Hot swappable connection: I used those: keywords: SATA Male To Female Power Data Converter 22Pin 7+15 Male To Female SATA To SATA Converter SATA To SATA Adapter Currently 6eur for 5:  Here on aliexpress Screws are listed in the BOM: - Self tapping HEX M3x12m button head, also easily available on aliexpress   For the ATX, you know what to do! 150mm x 84mm with 0.4mm additional tolerances   Hope it helps !
