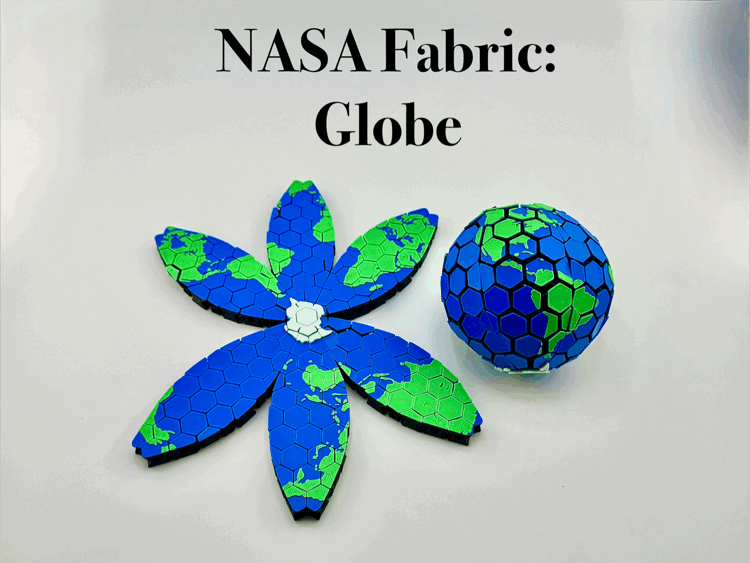

NASA Fabric: Globe (No AMS Needed)

Boost MePlease boost if you like my model!

Commercial License - https://www.patreon.com/c/measureonce/home

NASA Fabric Collection - https://makerworld.com/en/collections/17685211-nasa-fabric-models

PLEASE READ! Important Notes:

1. CLEAN YOUR BUILDPLATE AND USE GLUE BEFORE PRINTING! LAYER ADHESION IS VERY VERY IMPORTANT
2. USE PLA MATTE or PLA BASIC. This model has not been tested with silk filaments. I do not recommend using them due to the potential for over extrusion which can cause the layers to fuse
3. If you are using the NO AMS Version, Please use a layer height of 0.16mm. Do not change this value. If it does get changed, the color swaps will not be applied to the appropriate layer and the part will come out looking off.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------

This model uses 62 4x2 magnets.

Maker's Supply Store - https://us.store.bambulab.com/products/round-magnet?id=42102911074440

Amazon Link - https://www.amazon.com/dp/B0F4MYLY85

Print Settings:

Filament: Only PLA matte or PLA basic

Layer height: 0.16

Walls: 4

Wall Generator: Arachne

Color Swaps:

**************WARNING!! LAYERS CORRESPOND TO A LAYER HEIGHT OF 0.16. IF YOU CHANGE THE LAYER HEIGHT THEN THESE LAYER SWAPS WILL NOT APPLY AND YOUR PRINT WILL NOT LOOK AS INTENDED. *********************

Start: Black

Layer 54: Blue

Layer 58:  Green

Layer 60: White

Magnet Assembly:

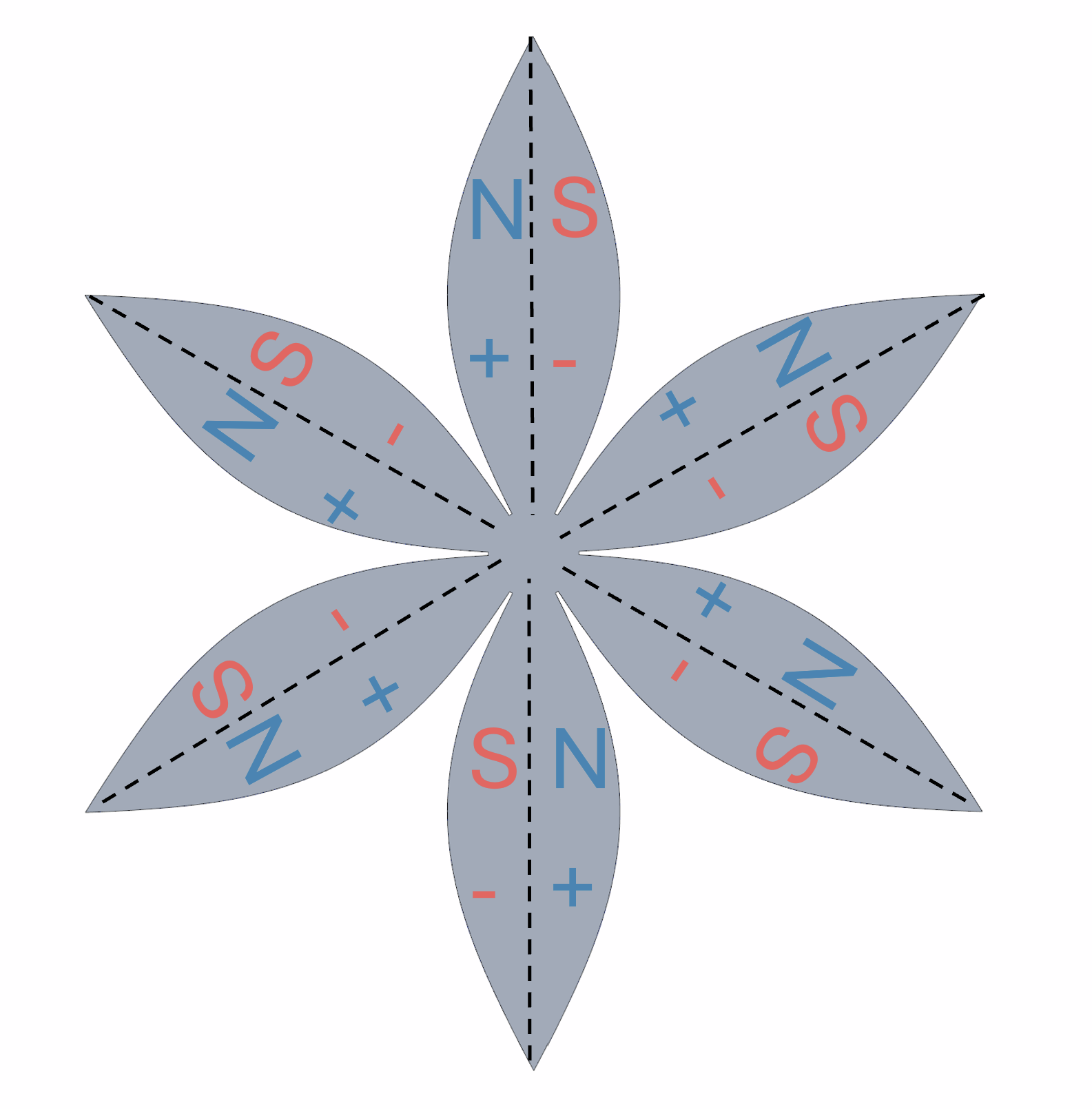

The magnets will need to be glued in. Start putting magnets of the same polarity on one side of each lobe. Work your way around clockwise, only putting magnets of the same polarity onto the same side of each lobe. Once all the magnets with the same outward facing polarity are assembled, flip the magnets over and repeat. See image below
